Overview

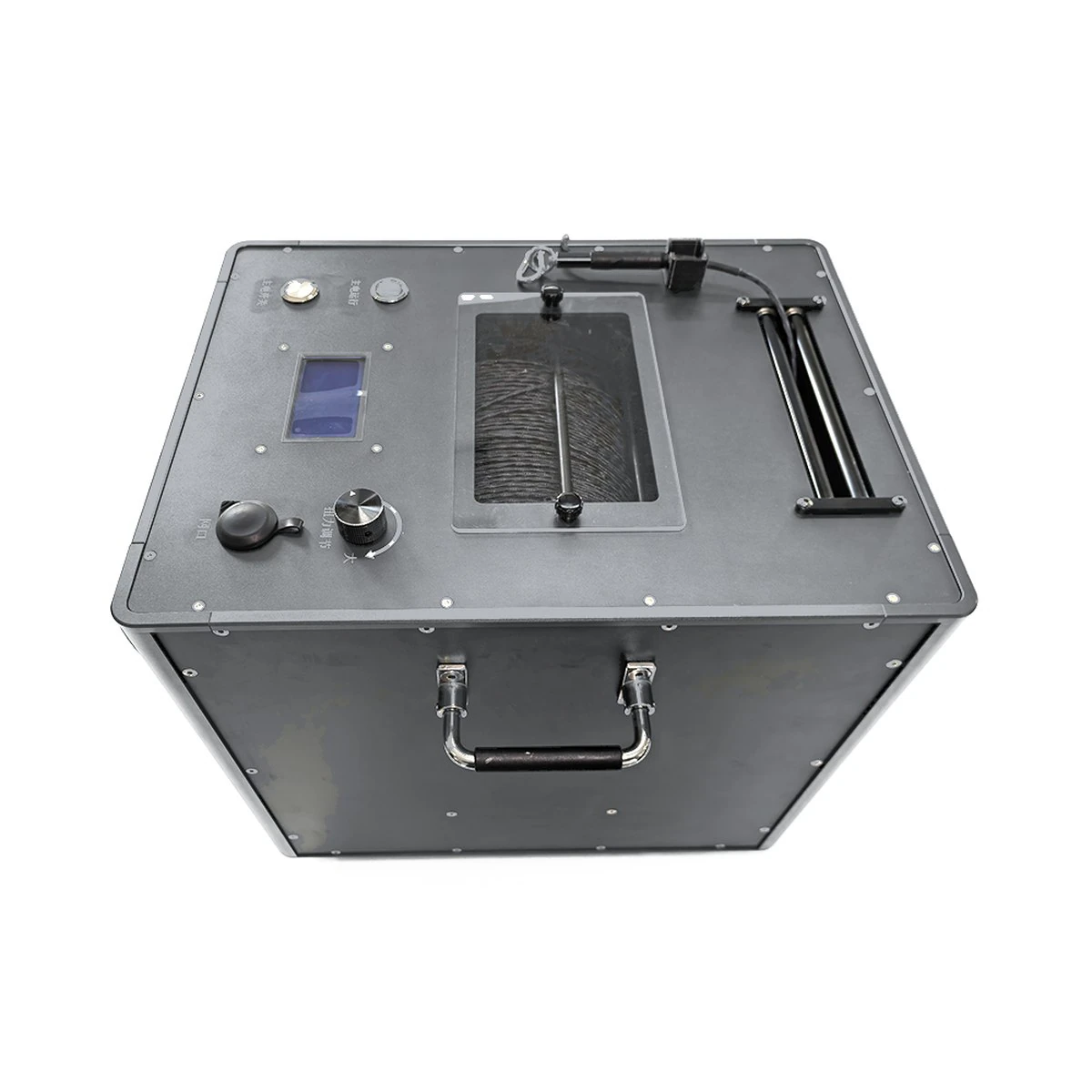

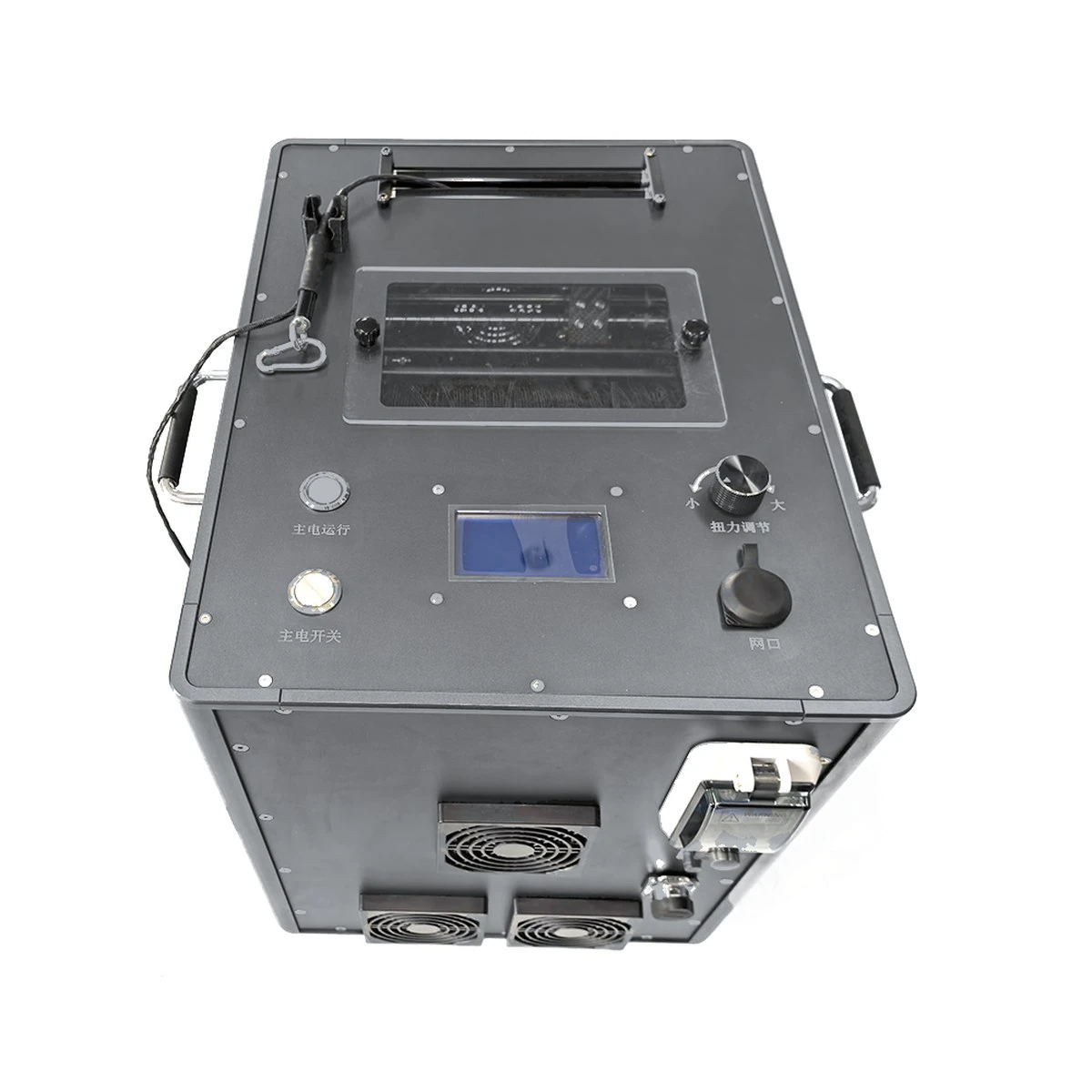

TP-T15 integrates a ground power supply, control circuitry, tether reel, and 120 m tether cable in one portable enclosure. It accepts 380 VAC three-phase input and supplies 800–1000 VDC through the tether to a compatible onboard power module installed on the UAV.
The reel supports passive cable payout during ascent and powered rewind during descent. The display reports output voltage, current, and power, while the torque control allows the operator to maintain appropriate tether tension.
Features
- 15 kW ground-side output for matched onboard converters
- 800–1000 VDC tether output from 380 VAC three-phase input
- 120 m integrated tether cable
- Passive payout and active rewind at up to 2 m/s or faster
- Real-time output voltage, current, and power display
