Overview

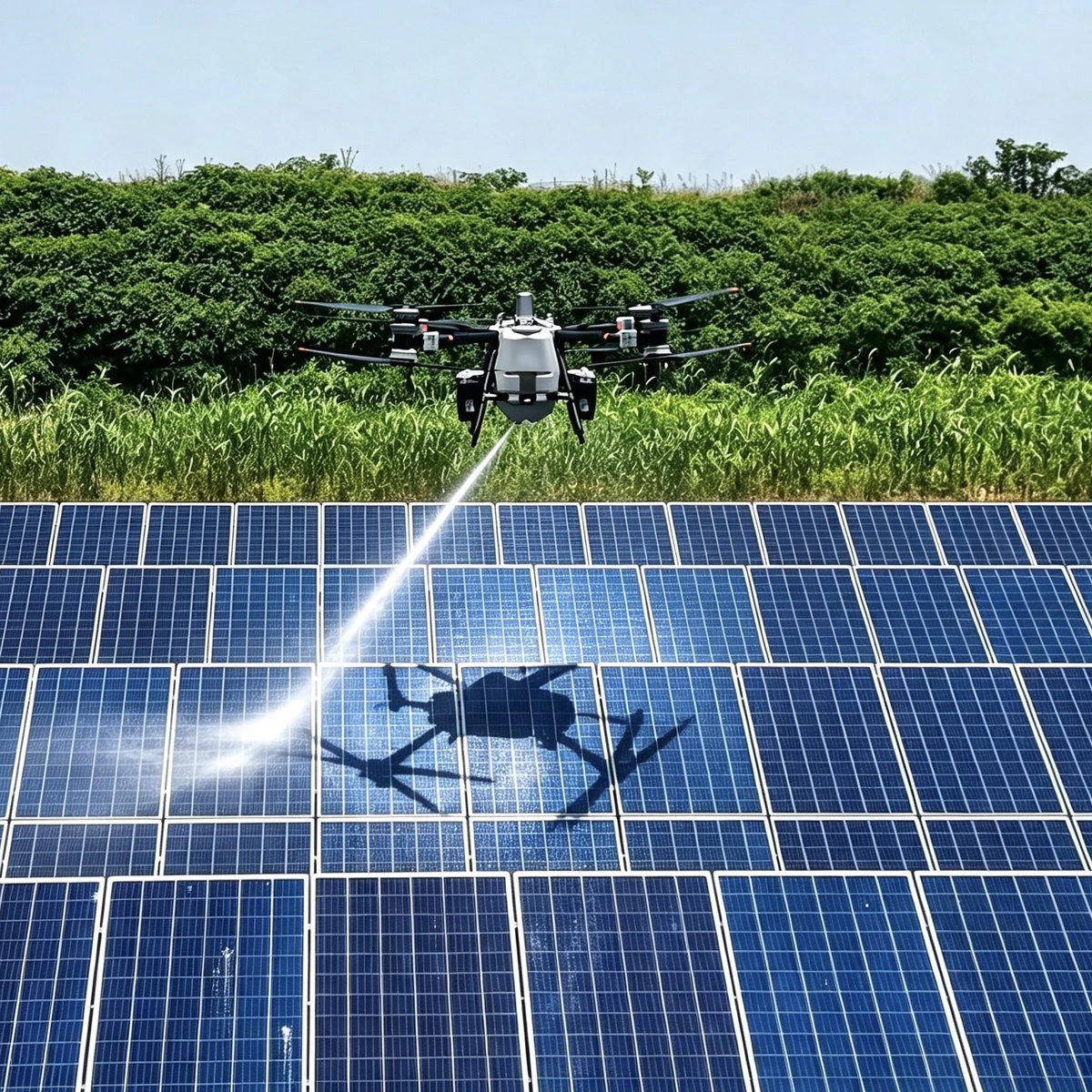

TP-FC100 is a solar-panel cleaning payload with dual 10–15 MPa pumps, three nozzles, a rated power of 2.5 kW, 36–72 V operating voltage and a payload weight of <8 kg, excluding the water tank. The TP-FC100 solar-panel cleaning payload is designed for heavy-lift multirotor UAVs equipped with a PSDK expansion interface. It combines two 10–15 MPa water pumps, three spray nozzles, and a 2.5 kW electrical system operating from 36–72 V.
The assembly supports clean water or a neutral photovoltaic-specific cleaning agent. Cleaning water comes from an onboard 80 L tank with a built-in high-pressure pump. Operators can control the payload locally through the aircraft remote controller or dispatch supported tasks through the associated cloud platform.
Features
- Three-nozzle spray system with dual high-pressure pumps
- Payload weight below 8 kg, excluding the water tank
- PSDK communication for compatible heavy-lift aircraft
- Local and remote task-control options documented in the factory manual
Key specifications
| Brand | TethPower |
|---|---|
| Compatible platforms | Heavy-lift multirotor UAVs with a PSDK expansion interface |
| Cleaning medium | Clean water or a neutral photovoltaic-specific cleaning agent |
| Control methods | Local remote controller / cloud task control |
| Payload weight | <8 kg, excluding water tank |
| Water supply | Onboard 80 L tank with built-in high-pressure pump |
| Spray assembly | 1120 × 371 × 263 mm |
| Water pumps | 2 |
| Pump pressure | 10–15 MPa |
| Rated power | 2.5 kW |
| Operating voltage | 36–72 V |
| Communication | PSDK |
| Nozzles | 3 |
FAQ about TP-FC100
How is compatibility for TP-FC100 confirmed?
Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.
What is included in a quotation for TP-FC100?
The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.
Where can I request documents or integration support for TP-FC100?
Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
Downloads
Product manual
FC100 Drone Solar Panel Cleaning System | TP-FC100
Need a different voltage, connector or a complete tethered system?Discuss a custom requirement Configure your system
