Ground Power Station

30kW Tethered Drone Ground Power Station | TP-T30

A 30 kW automatic tether management and ground power station with a 120 m cable and 800–1000 VDC output for high-power UAV operations.

Power class: 30 kW
Output voltage: 800–1000 VDC
Cable length: 120 m

Contact Sales

Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.

Chat on WhatsApp

Product details

Products

Overview

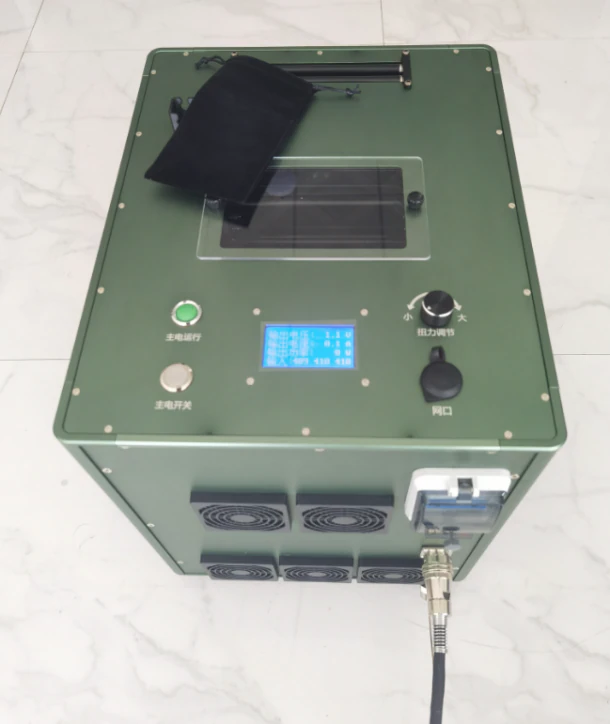

TP-T30 is a portable automatic tether management and ground power system for high-power UAV platforms. It integrates the power conversion unit, 120 m tether cable, cable reel, main frame, and control electronics in one enclosure, providing continuous wired power and controlled cable payout and rewind.

Features

30 kW maximum ground-side power output
800–1000 VDC tether output for matched onboard converters
Passive cable payout and powered rewind
Integrated display for output voltage, current, power, and input voltage

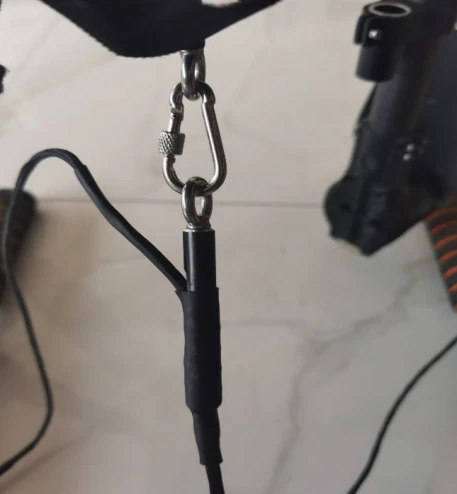

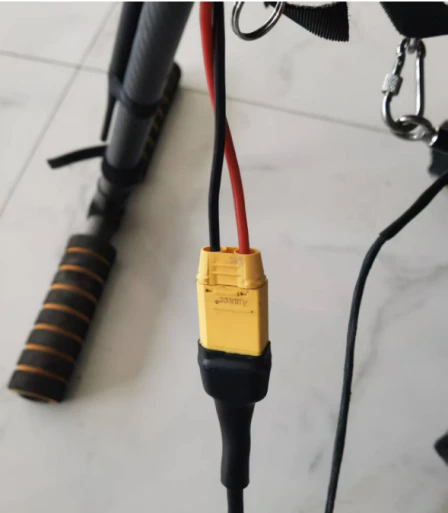

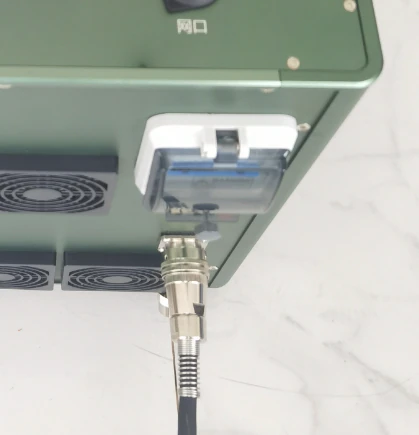

Tether attachment and electrical connectors documented in the factory manual

Key specifications — 30kW Tethered Drone Ground Power Station | TP-T30
Maximum output power	30 kW	Brand	TethPower
Model	TP-T30	External power supply	380 VAC, three phase
Output voltage	800–1000 VDC	Recommended onboard power	≤20 kW
Cable length	120 m	System enclosure	472 × 377 × 453 mm (L×W×H)
Overall size with handles	500 × 410 × 470 mm (L×W×H)	Weight	39.5 ± 0.5 kg
Cable operation	Passive payout / active rewind	Maximum rewind speed	≥2 m/s

FAQ about 30kW Tethered Drone Ground Power Station | TP-T30

Answers to common compatibility, configuration, quotation, and delivery questions.

What is 30kW Tethered Drone Ground Power Station | TP-T30 designed for?

A 30 kW automatic tether management and ground power station with a 120 m cable and 800–1000 VDC output for high-power UAV operations.

How is compatibility for 30kW Tethered Drone Ground Power Station | TP-T30 confirmed?

Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. TethPower reviews the complete power chain before confirming a configuration.

What is included in a quotation for 30kW Tethered Drone Ground Power Station | TP-T30?

The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.

Where can I request documents or integration support for 30kW Tethered Drone Ground Power Station | TP-T30?

Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
