Products
Airborne power modules that convert high-voltage tether input to the aircraft bus voltage required for continuous UAV operation.
Filter by power
Choose one rated-power range (kW)
Showing products in Onboard Power Supply:16
TP-P1.5 is a compact 24V airborne DC-DC power module for tethered drones, with 1.4kW rated and 1.5kW peak output, 380g weight and 360-400VDC input.
TP-P2.5 is a 24V/48V airborne power module for 6S and 12S tethered drones, with 1.5kW rated / 2.5kW peak power, 532g weight and battery backup integration.
24V isolated DC/DC module with 680–800VDC input, 3.5kW maximum output and a compact 187 × 95 × 70mm heat-sink envelope.

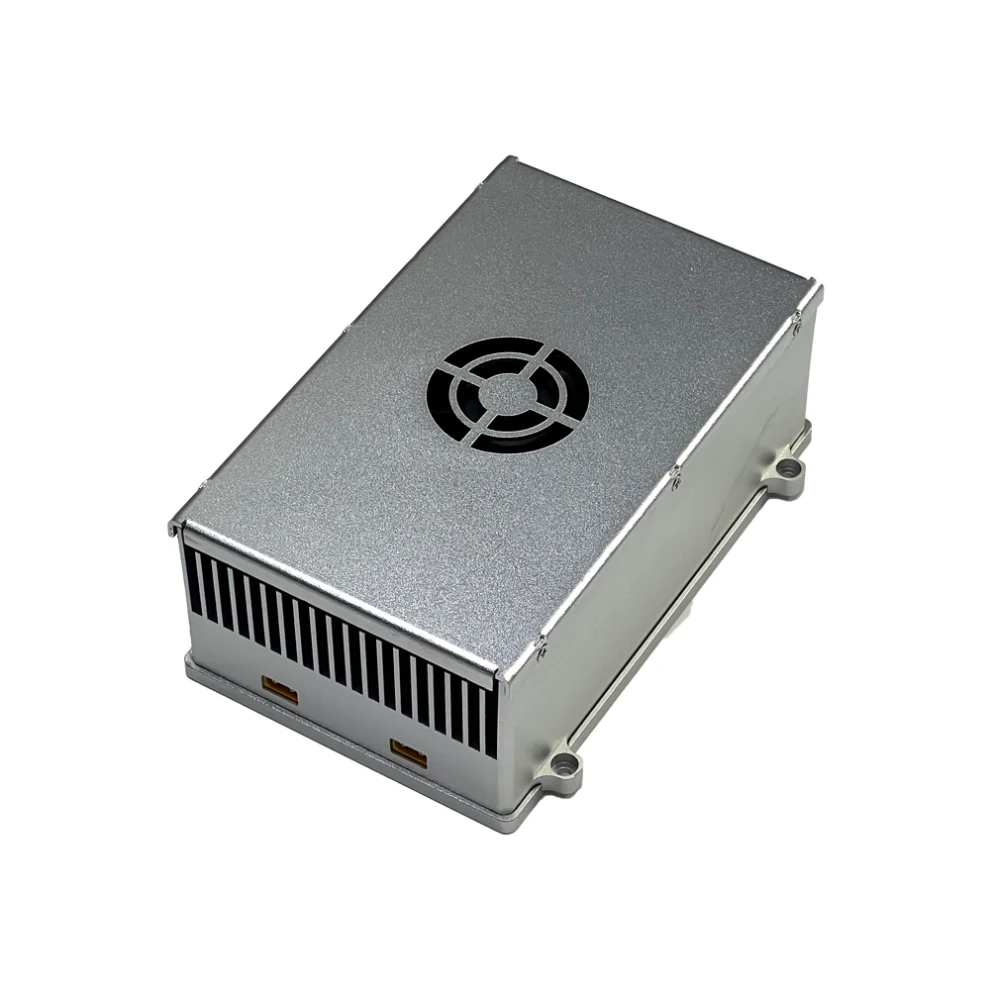

TP-P4F is a lightweight 50V-class airborne power module for tethered UAVs with 3.5kW rated, 4.3kW peak output, 360-430VDC input, IP65 and ≤0.8kg weight.

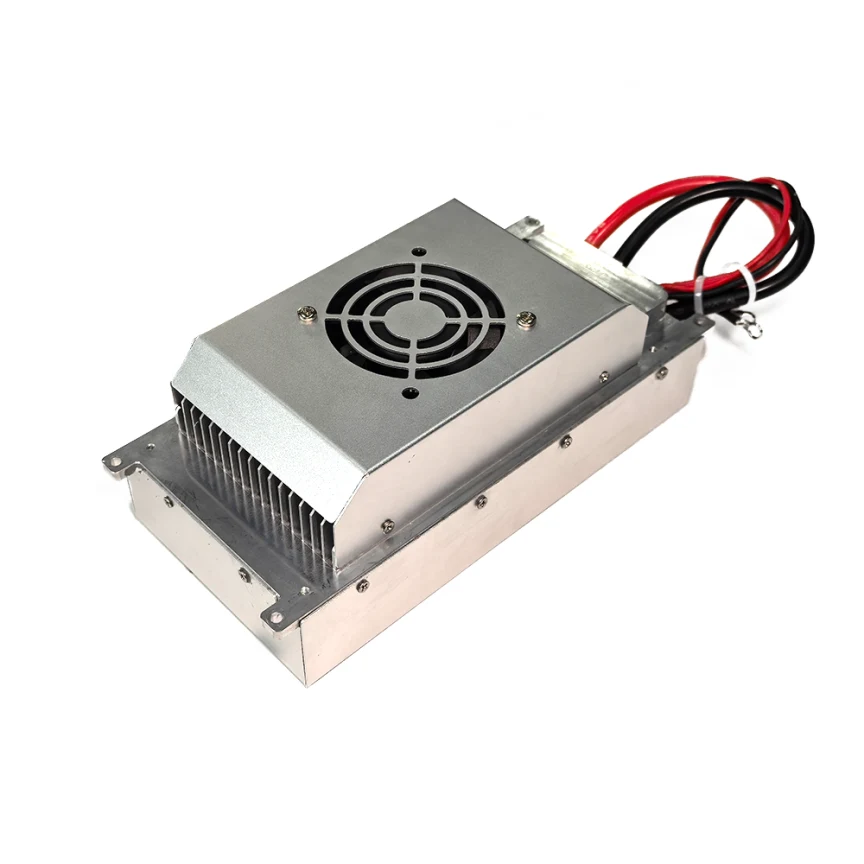

TP-P4 is a regulated 4kW 50V airborne power module for tethered UAVs, with 680-800VDC input, 80A rated current, IP54, 1kg weight and compact installation.

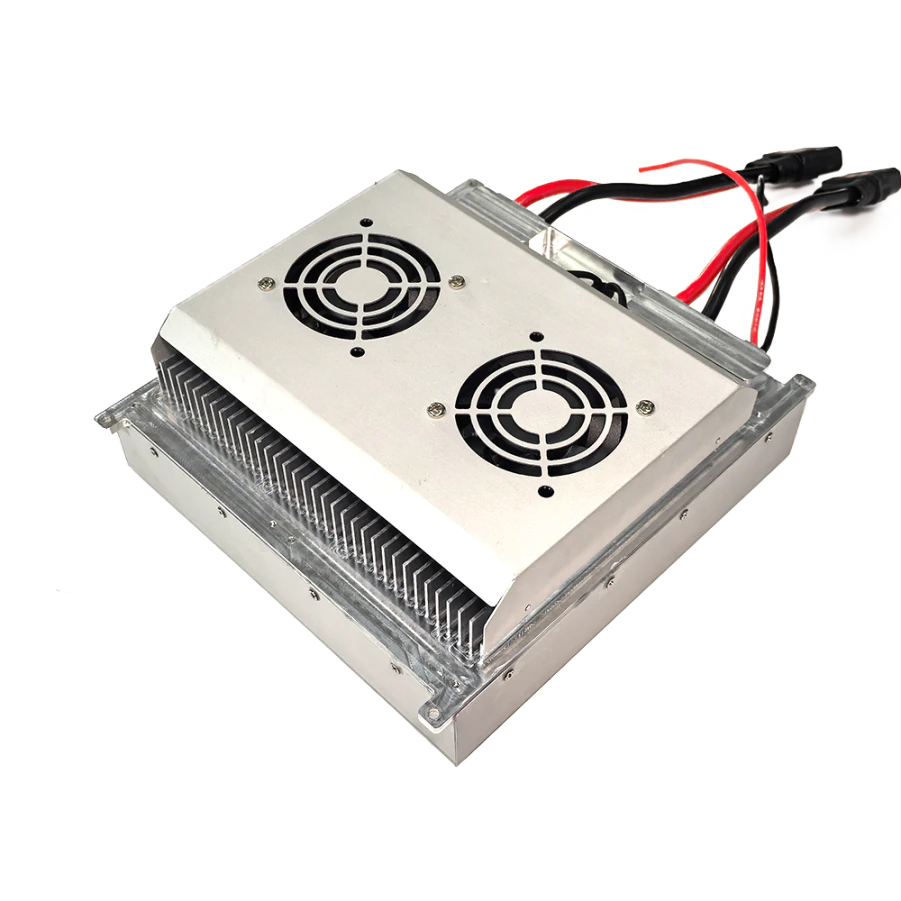

TP-P5 is a 5kW 24V airborne power module for high-current tethered UAV systems, with 680-800VDC input, 210A rated current, 2.2kg weight and IP54 protection.

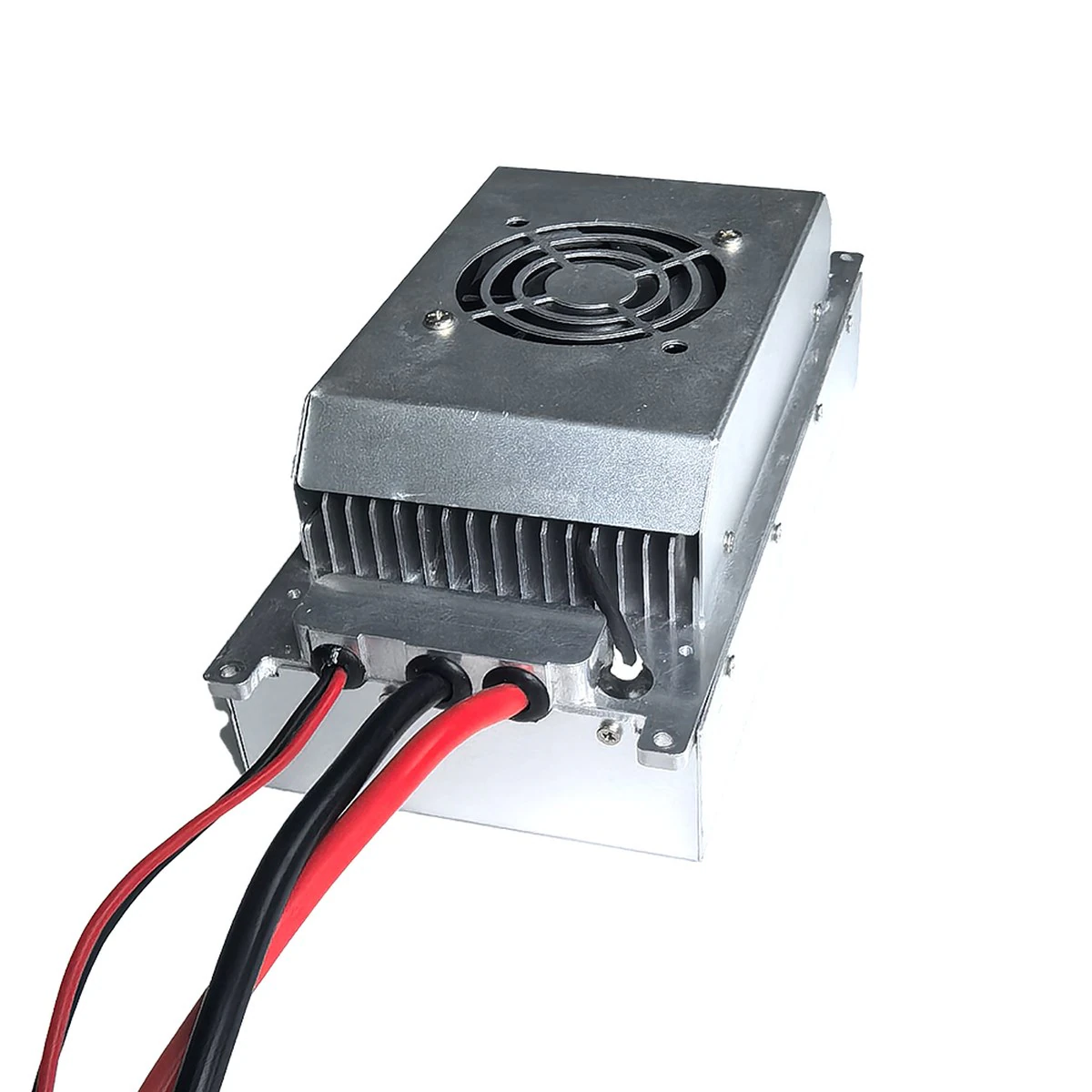

TP-P6 is a 6kW rated / 7kW peak 50V airborne power module with 600-750VDC input, IP65 protection, ≤1.4kg weight and high-power tethered UAV integration.
TP-P8 is an 8kW 60V airborne power module for tethered UAVs, with 680-800VDC input, 134A rated current, 2.2kg weight, ≥97% efficiency and IP54 protection.
TP-P12 60V-class airborne module provides 59V rated output, 11.8kW confirmed rated power, 800-1000VDC input, 200A current, 3kg weight and IP65 protection.

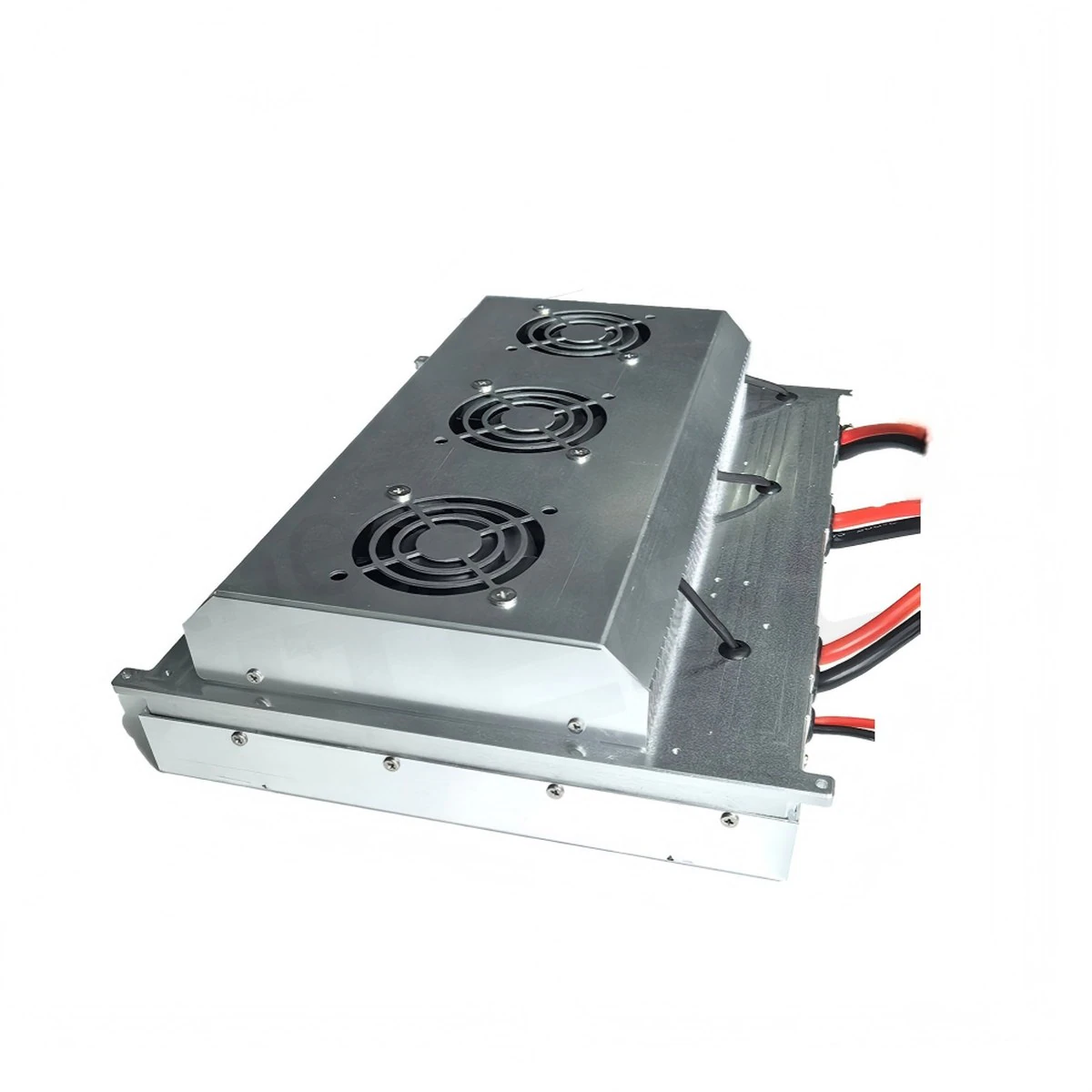

TP-P12 50V is a 12kW airborne power module for heavy-lift tethered UAVs, with 900-1000VDC input, 240A output, 3kg weight, IP65 and ≥97% efficiency.
TP-P16 is a 16kW 50V airborne power module for heavy-lift tethered UAVs, with 850-1000VDC input, 320A rated output, 6.5kg weight, ≥97% efficiency and IP54.
TP-P18 is an 18kW 50V airborne power module for heavy-lift tethered drones, with 900-1000VDC input, 360A output, 8.2kg weight, IP65 and ≥97% efficiency.

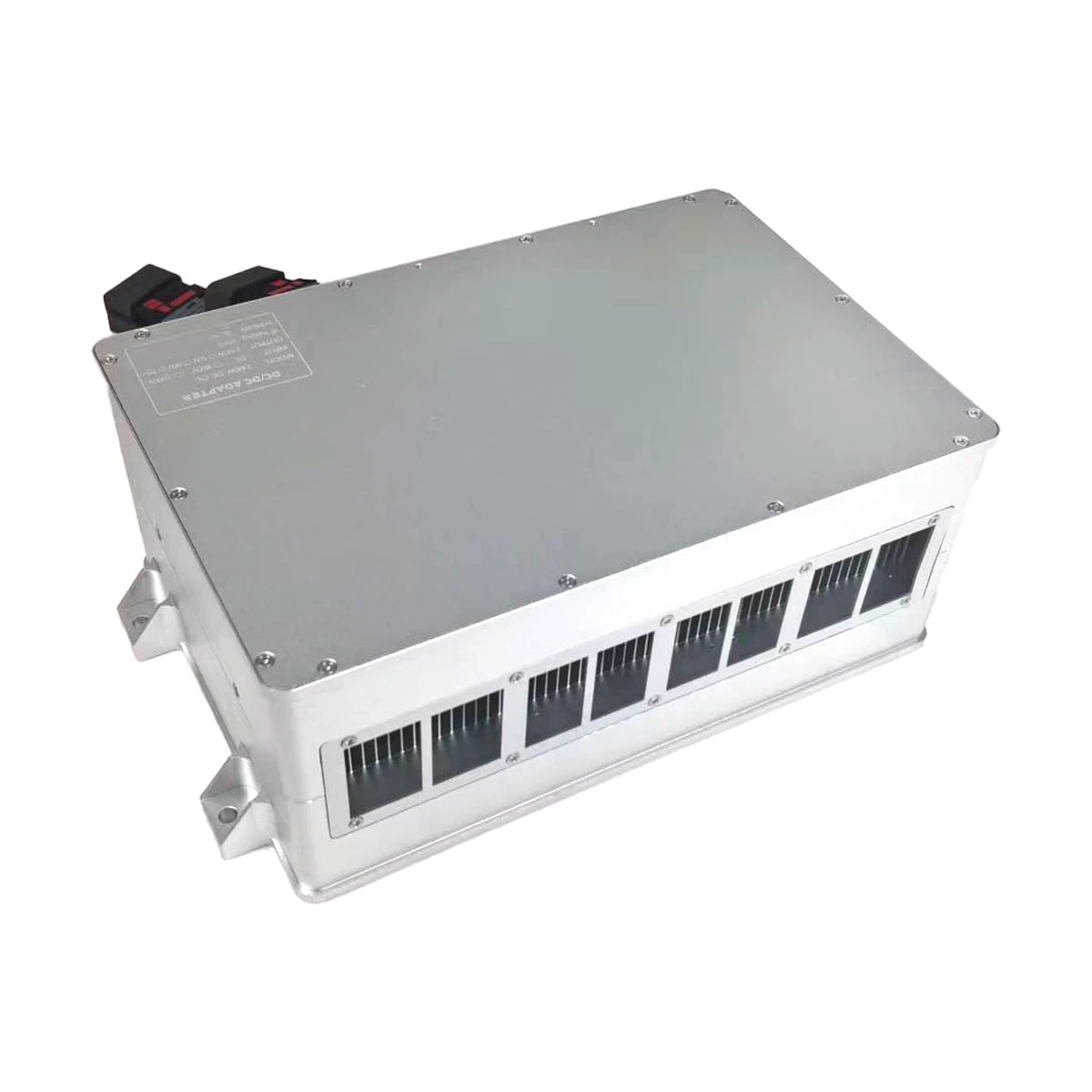

TP-P24 is a 24kW rated / 26kW peak 60V airborne power module for heavy-lift tethered UAVs, with 850-1000VDC input, 400A output, ≤9.5kg and IP65.

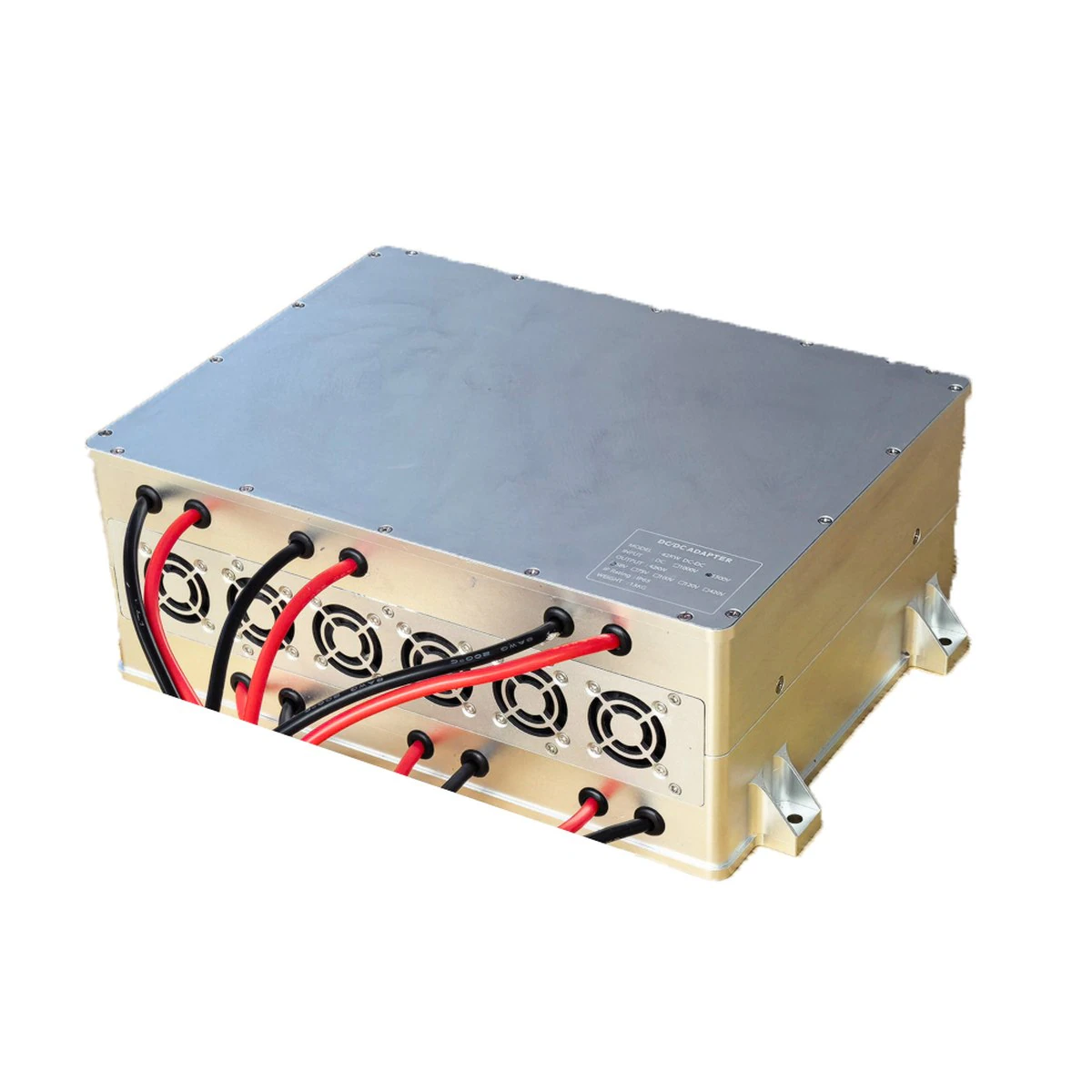

TP-P36 is a 36kW heavy-lift airborne power module with 1200-1450VDC tether input, 58.5V rated output, 40kW maximum power, 12.5kg weight and IP65.

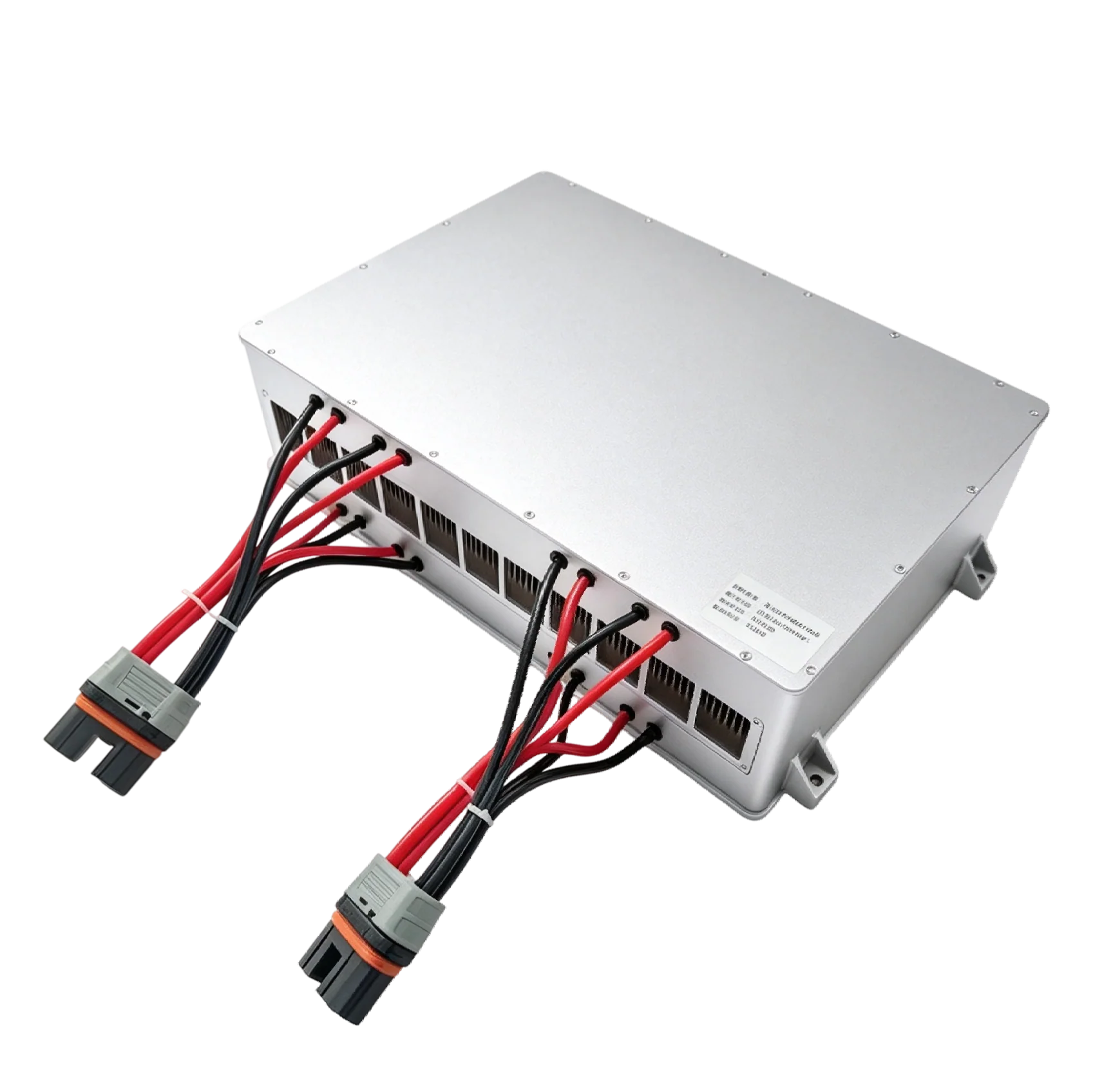

70kW isolated onboard DC/DC module with 1600–2000VDC input, 116VDC output, 75kW maximum output and IP65 protection.

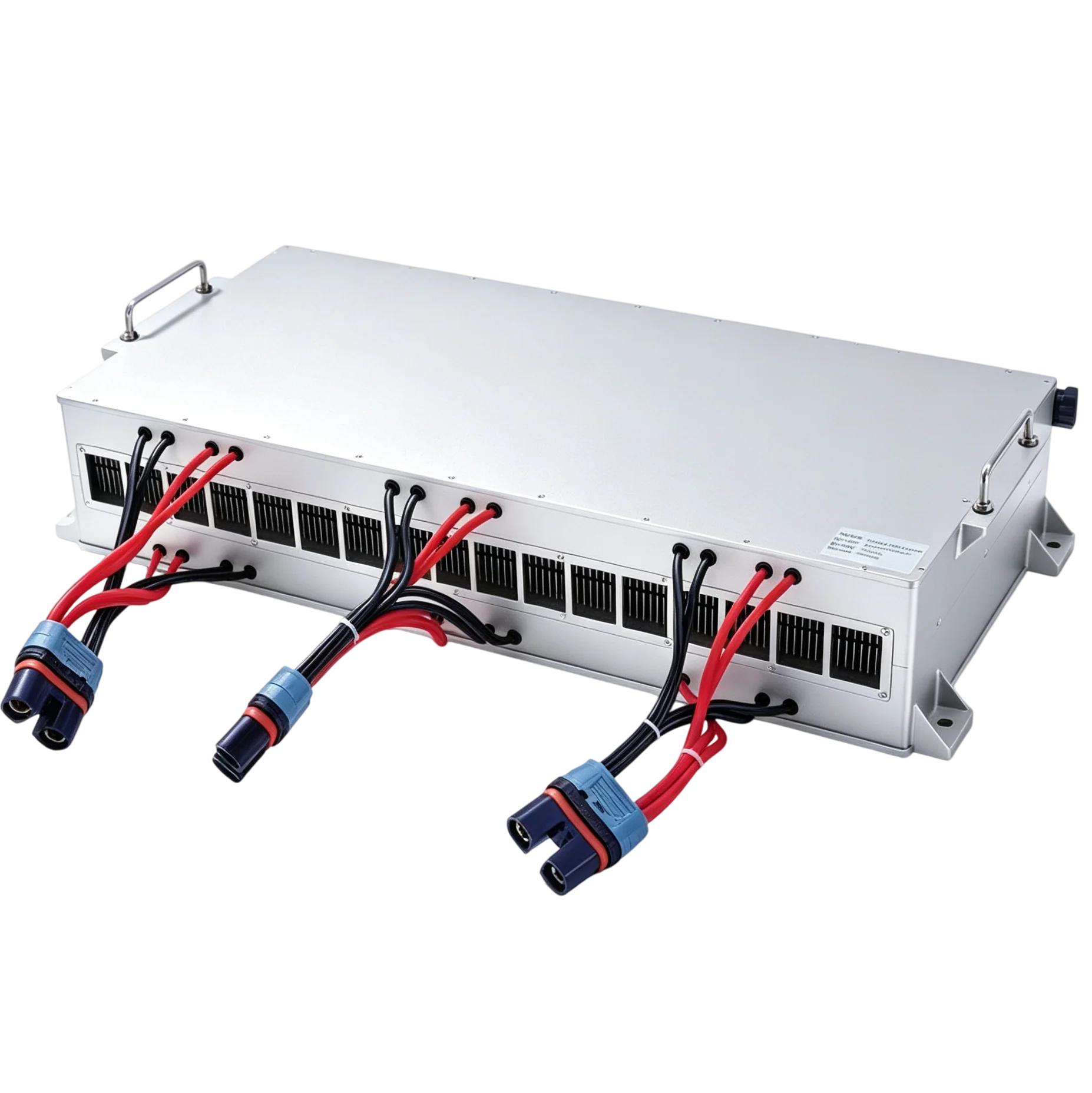

108kW isolated onboard DC/DC module with 1600–2000VDC input, 430VDC output, 120kW maximum output and IP65 protection.
