Explore tethered drone power systems, drone power tethers, onboard modules, ground stations and mission equipment. Compare power, voltage and integration requirements.
9products
TP-P1.5 is a compact 24V airborne DC-DC power module for tethered drones, with 1.4kW rated and 1.5kW peak output, 380g weight and 360-400VDC input.
TP-P2.5 is a 24V/48V airborne power module for 6S and 12S tethered drones, with 1.5kW rated / 2.5kW peak power, 532g weight and battery backup integration.
24 VDC isolated DC/DC module with 680–800VDC input, 3.5kW maximum output and a compact 187 × 95 × 70mm heat-sink envelope.
TP-P4 is a regulated 4kW 50V airborne power module for tethered UAVs, with 680-800VDC input, 80A rated current, IP54, 1kg weight and compact installation.
A portable 4 kW tethered ground power station with a 110 m cable, active rewind at up to 2 m/s, and compensated 400 VDC output.
Portable automatic tethered pay-in/pay-out ground station with integrated winch, tether cable, and high-voltage DC supply for continuous UAV power.
TP-P5 is a 5kW 24V airborne power module for high-current tethered UAV systems, with 680-800VDC input, 210A rated current, 2.2kg weight and IP54 protection.
TP-P6 is a 6kW rated / 7kW peak 50V airborne power module with 600-750VDC input, IP65 protection, ≤1.4kg weight and high-power tethered UAV integration.

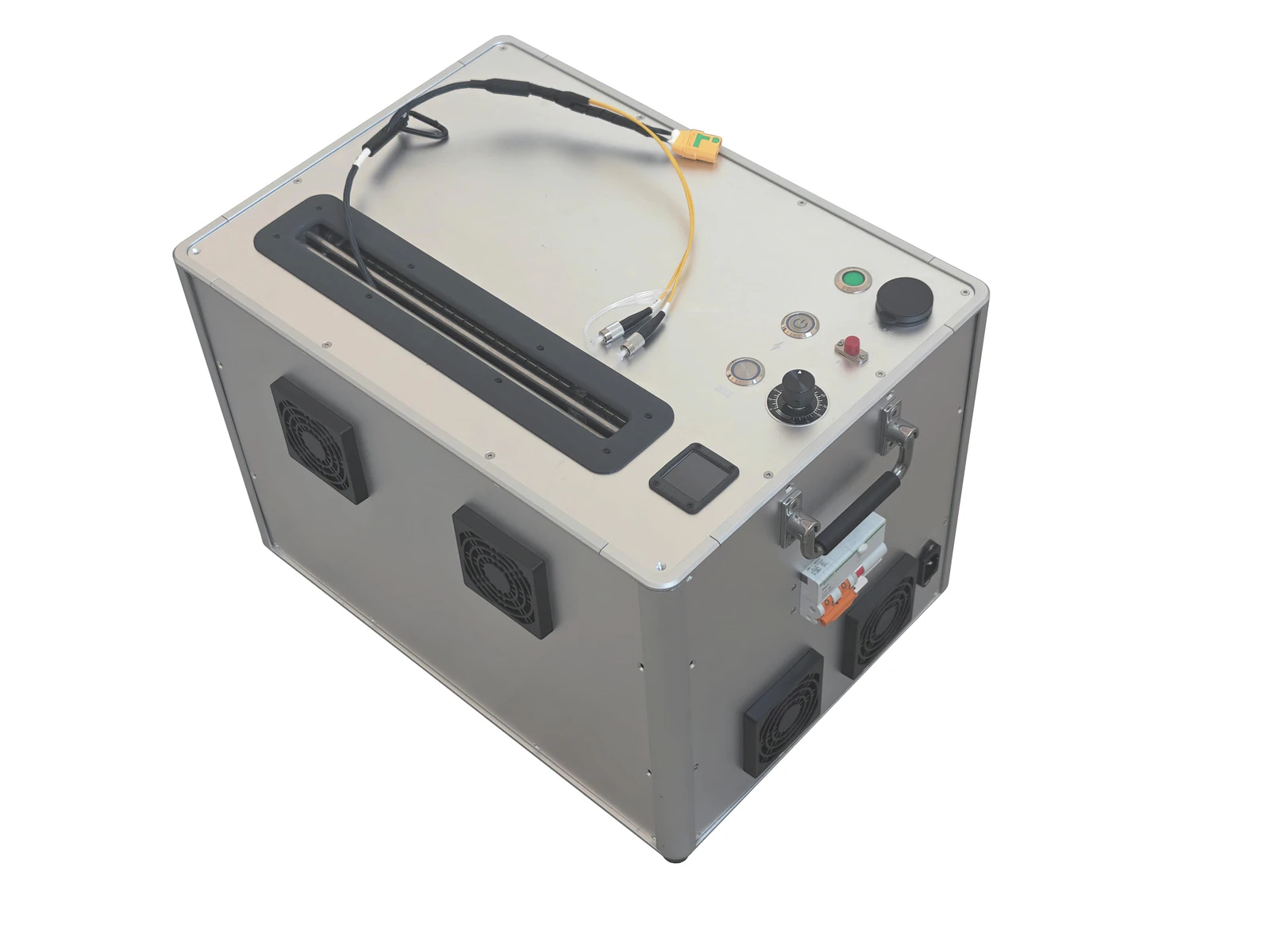

A portable 7 kW tethered ground power station with 220 VAC input, 750 VDC output, a 120 m cable, automatic rewind, and recommended onboard power up to 5 kW.
TP-P8 is an 8kW 50V airborne power module for tethered UAVs, with 680-800VDC input, 160A rated / 175A maximum current, 2.2kg weight, ≥97% efficiency and IP54 protection.
Continuous-power and lighting kit for DJI M4E, combining an onboard module, lighting payload and ground station for long-endurance missions.
Tethered power for DJI Matrice 300/350: 110 m cable, 400 VDC ground output and a 2,500 W, 48 VDC airborne module.
Portable tethered lighting for a DJI Mavic 3 you supply (aircraft not included), with lighting payload and ground power in one pull-rod case for rapid deployment.
17 L cargo case for DJI Matrice 400; 1.6 kg aluminum-alloy and EPP construction, mounted below the aircraft with infrared-sensor clearance.
Adjustable 375 W COB lighting lamp developed for the DJI Matrice 400 tethered lighting system.
Complete DJI Matrice 400 tethered lighting system with 120 m cable, automatic rewind and prolonged external-power operation.
TP-P12 50V is a 12kW airborne power module for heavy-lift tethered UAVs, with 900-1000VDC input, 240A output, 3kg weight, IP65 and ≥97% efficiency.
TP-P12 60V-class airborne module provides 59V rated output, 11.8kW rated power, 800-1000VDC input, 200A current, 3kg weight and IP65 protection.
TP-P16 is a 16kW 50V airborne power module for heavy-lift tethered UAVs, with 850-1000VDC input, 320A rated output, 6.5kg weight, ≥97% efficiency and IP54.
TP-P18 is an 18kW 50V airborne power module for heavy-lift tethered drones, with 900-1000VDC input, 360A output, 8.2kg weight, IP65 and ≥97% efficiency.
770 mm carbon-fiber spray boom for DJI Matrice 400; 830 g, a universal 1/4-inch quick-release base and 12 mm quick-disconnect interfaces.
Cross oscillation spray gun for DJI M400: single-axis horizontal or vertical 30° motion, with direction adjusted by hand after stopping.
TP-SG01 is a retractable straight spray boom for compatible third-party cleaning-drone platforms, with a 25 MPa pressure-resistant pipeline.
TP-SG02 is a cleaning spray gun accessory for tethered UAV wash systems, supporting industrial cleaning deployments that need a compact airborne spray end-effector.
TP-SG nozzle accessory kit with fan, column, dual-purpose and universal rotating options for different tethered-drone cleaning spray patterns.
TP-P24 is a 24kW rated / 26kW peak 58.5V airborne power module for heavy-lift tethered UAVs, with 850-1000VDC input, 400A output, ≤9.5kg and IP65.
An FC100-class solar-panel cleaning payload with dual 10–15 MPa pumps, three nozzles, 36–72 V operation, and PSDK control for aerial maintenance.
A portable 12 kW tethered ground power station with 380 VAC three-phase input, 800–1000 VDC output, and a 120 m cable.
A 100 L IP68 firefighting bucket for DJI FC100, T100S, FC30, and compatible carrier platforms, with remotely adjustable discharge up to 45 L/s.
Design TP-P36 installations for 32kW actual output. The 36kW value is an extreme-test value, not a continuous rating. 1200–1450VDC input and IP65 protection.
A 16 kW tethered ground power and automatic reel system with 380 VAC three-phase input, 1000 VDC output, and a 120 m cable.
A portable 25 kW tethered ground power and automatic reel system with 380 VAC three-phase input, 1000 VDC output, and a 120 m cable.
A 36 kW tethered ground power station with three-phase 380–400 VAC input, rated and default 1500 VDC / 24 A output, a 120 m cable, and manually adjusted winding torque.
A modular 60 kW ground power system with 380 VAC three-phase input, a 1500 VDC default maximum system voltage, and a separate tether winch enclosure.
70kW isolated onboard DC/DC module with 1600–2000VDC input, 116VDC output, IP65 protection.
A modular 70 kW ground power system with 380 VAC three-phase input, a 1500 VDC default maximum system voltage, and a 150 m tether winch.
108kW isolated onboard DC/DC module with 1600–2000VDC input, 430VDC output, 120kW maximum output and IP65 protection.
Try another model, category, or power class.
We supply airborne modules and ground stations individually or as part of a configuration. Start with the equipment you need and tell us what you already have.
Prepare the voltage, load, mounting and cooling information needed to select an airborne DC-DC module for a tethered UAV.
Read the guidePrepare a DJI Matrice 400 cleaning enquiry around the spray accessory, ground water supply, hose route and required working distance.
Read the guidePrepare a concise project brief with the aircraft, task, power requirements, site conditions and equipment scope needed for a useful quotation.
Read the guide
