DJI Matrice 400 Tethered Lighting System | TP-Matrice M400

Overview

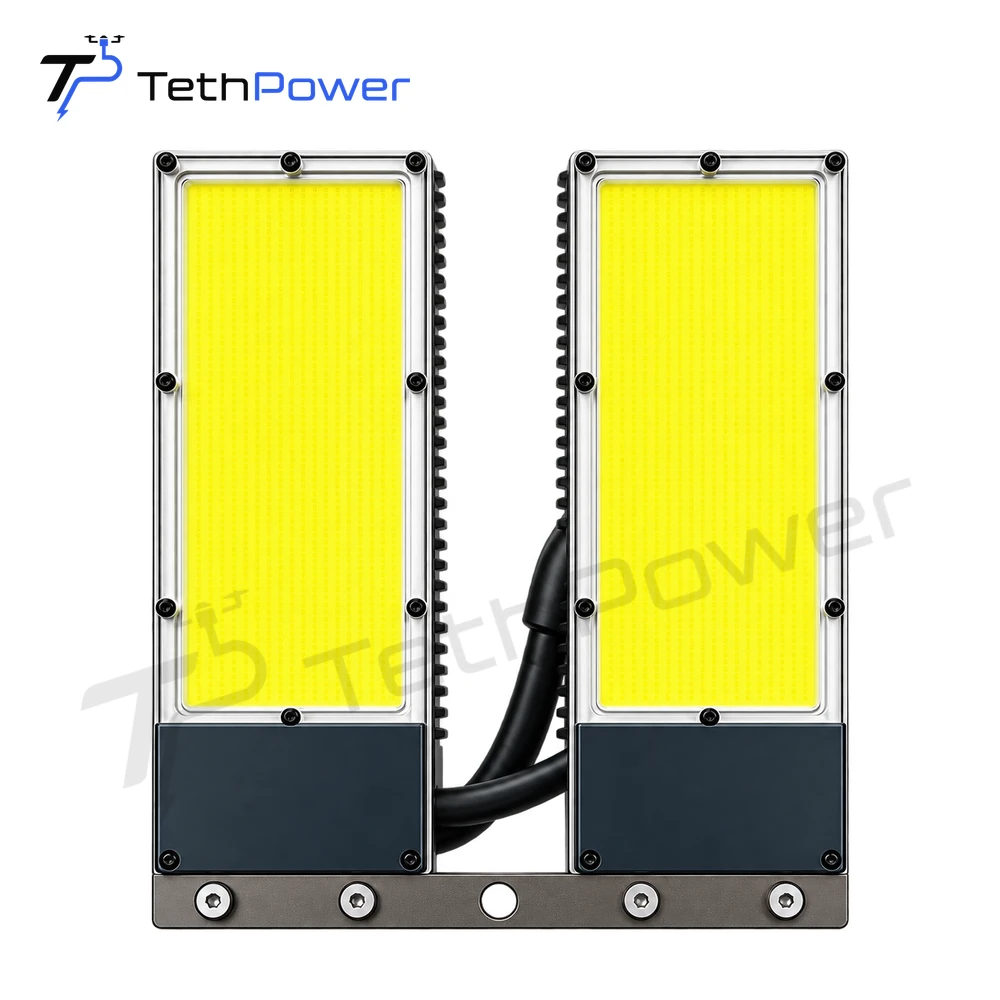

TP-Matrice M400 is a tethered lighting system designed for the DJI Matrice 400. The standard configuration combines the TP-T-M400 ground unit, TP-P-M400 airborne power module and 4 TP-P-400 lighting lamps; an 8-lamp configuration is optional.

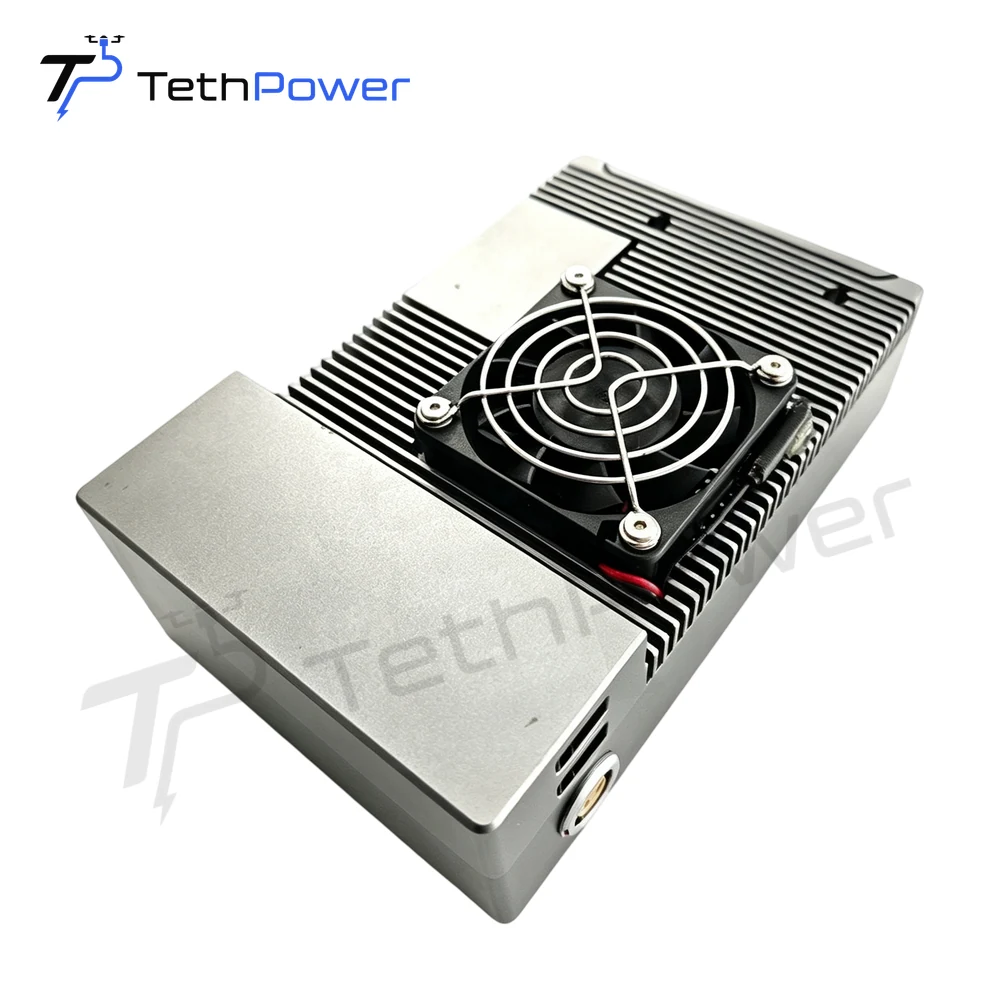

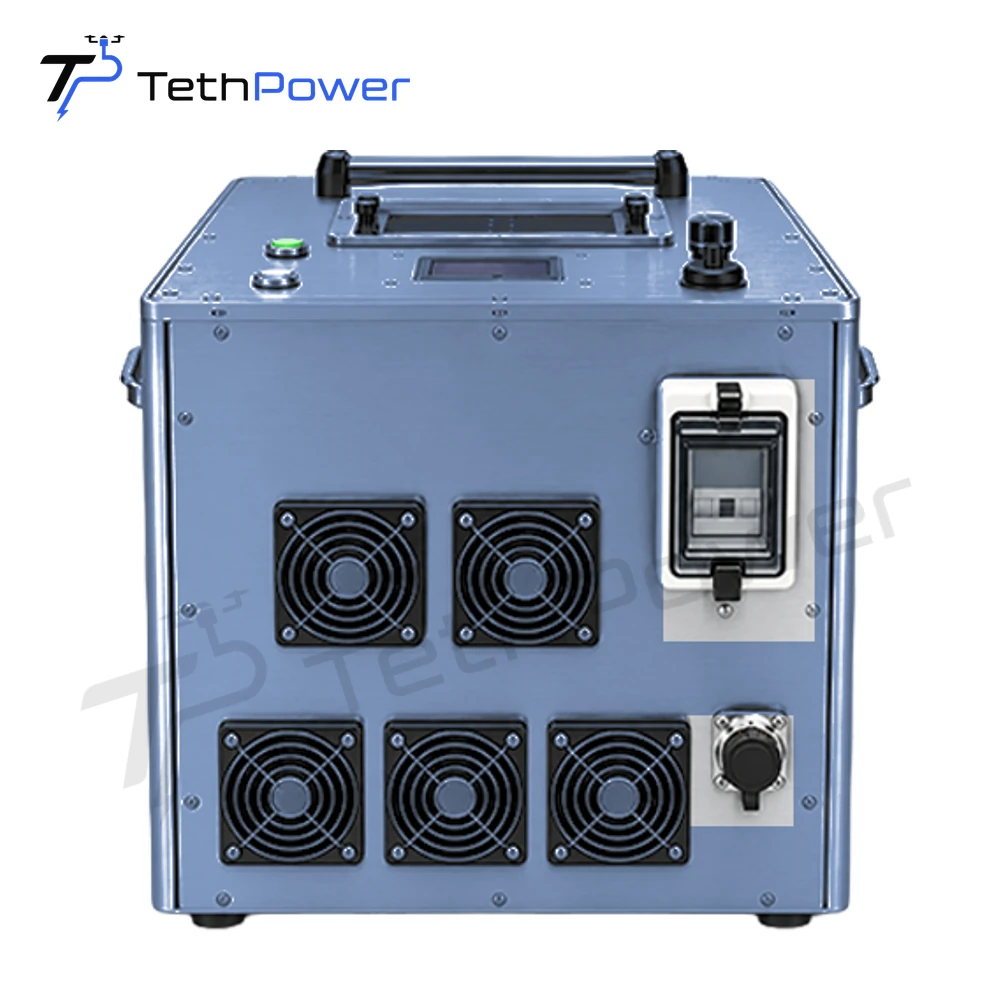

The ground unit accepts 220 V AC, supplies 750 V DC through a 120 m tether and uses passive payout with active rewind at up to 2 m/s. The airborne module converts 700–800 V DC to 52 ± 2 V DC, with 3000 W maximum output and 55 A maximum current. The architecture is designed for long-duration tethered operation.

Features

• Integrated TP-T-M400 ground unit, TP-P-M400 airborne module and 4 TP-P-400 lamps as standard, with 8 lamps optional
• 120 m tether with passive payout and active rewind at up to 2 m/s
• 750 V DC ground transmission with 52 ± 2 V DC airborne output
• TP-P-M400 maximum output of 3000 W and 55 A
• Long-duration tethered operation from external power

Key specifications

Applications

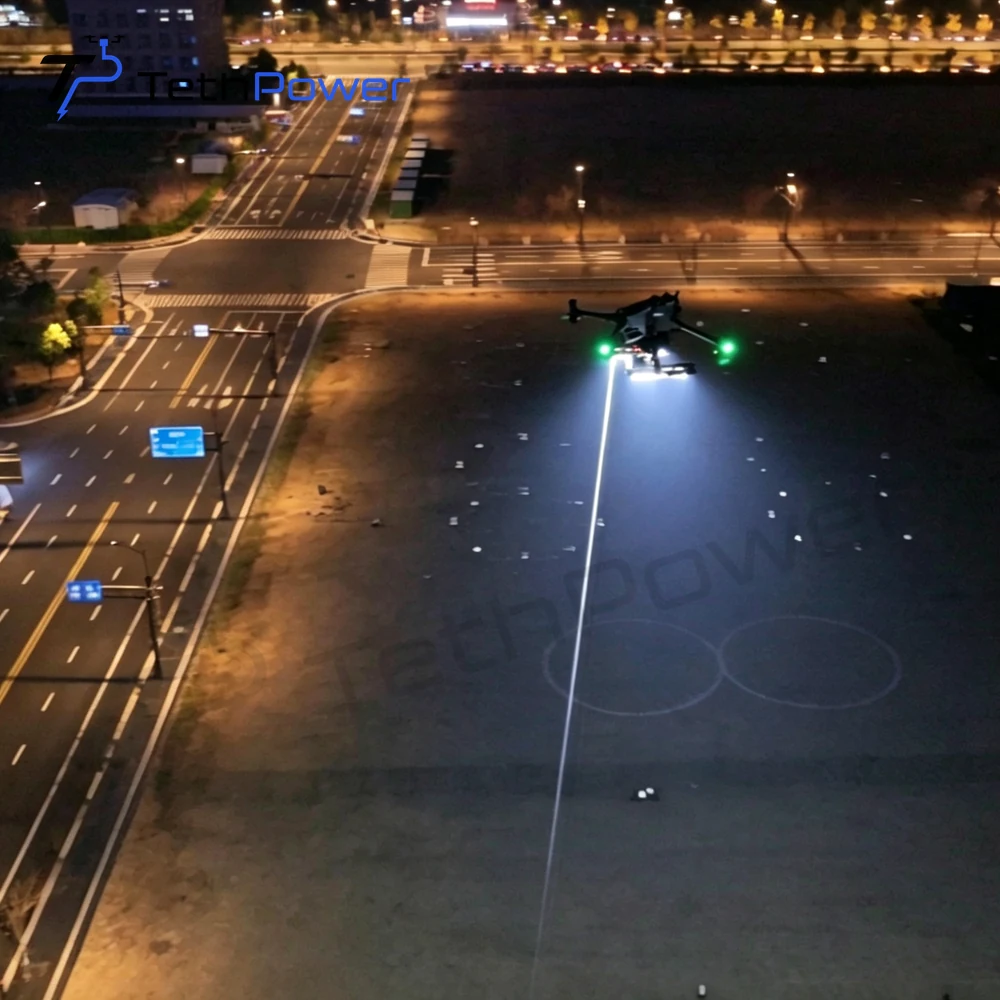

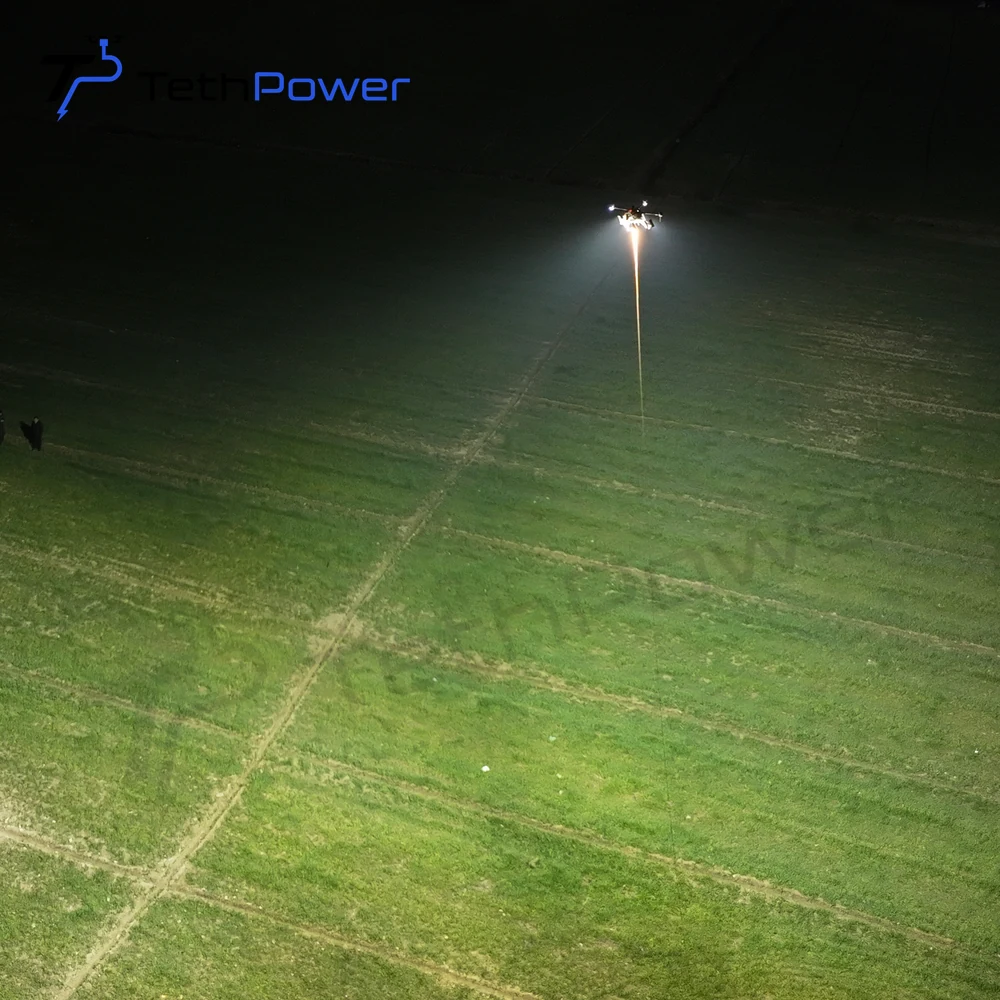

• Persistent nighttime area lighting
• Emergency and public-safety illumination
• Industrial inspection and temporary worksite lighting

System selection guidance

Confirm the DJI Matrice 400 configuration, required illumination, available 220 V AC supply, tether routing, operating environment and installation before ordering. Confirm the output and interface of any generator or energy-storage source before connection.
