DJI Matrice 400 Transport Case | TP-M400 Transport

Overview

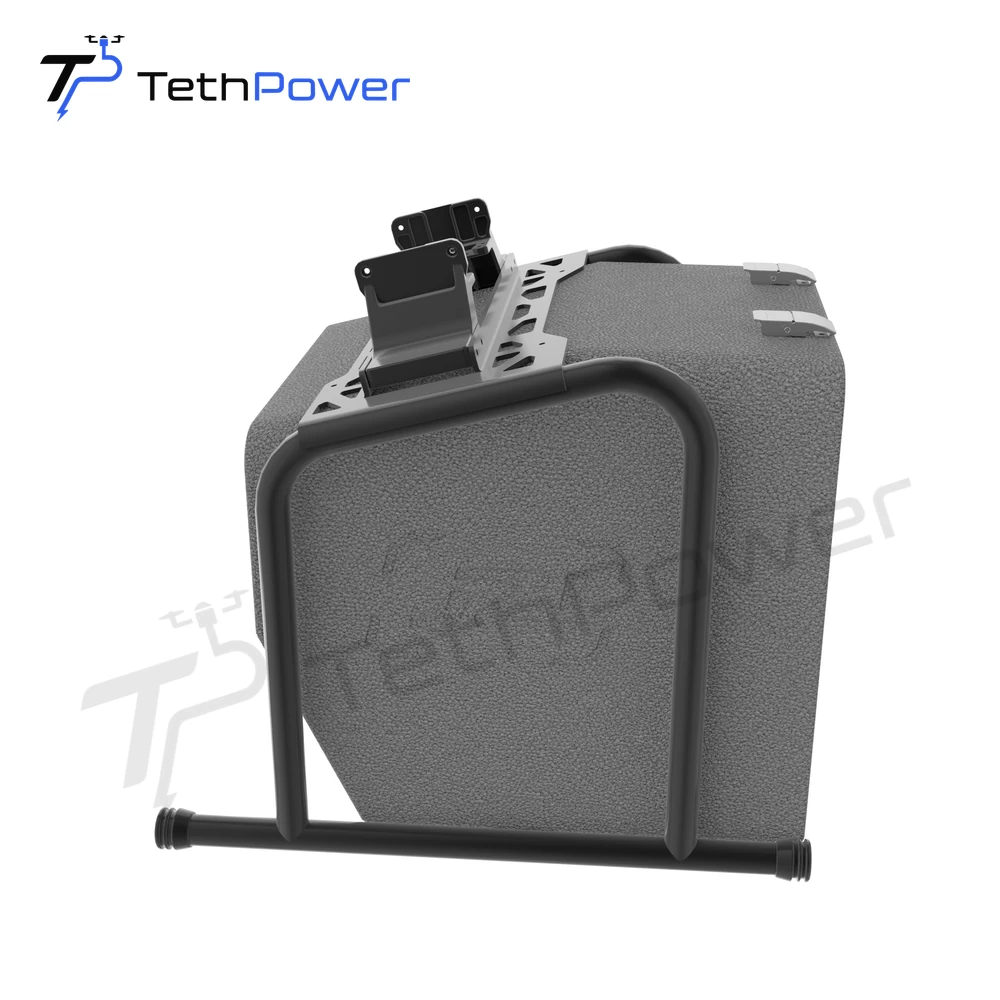

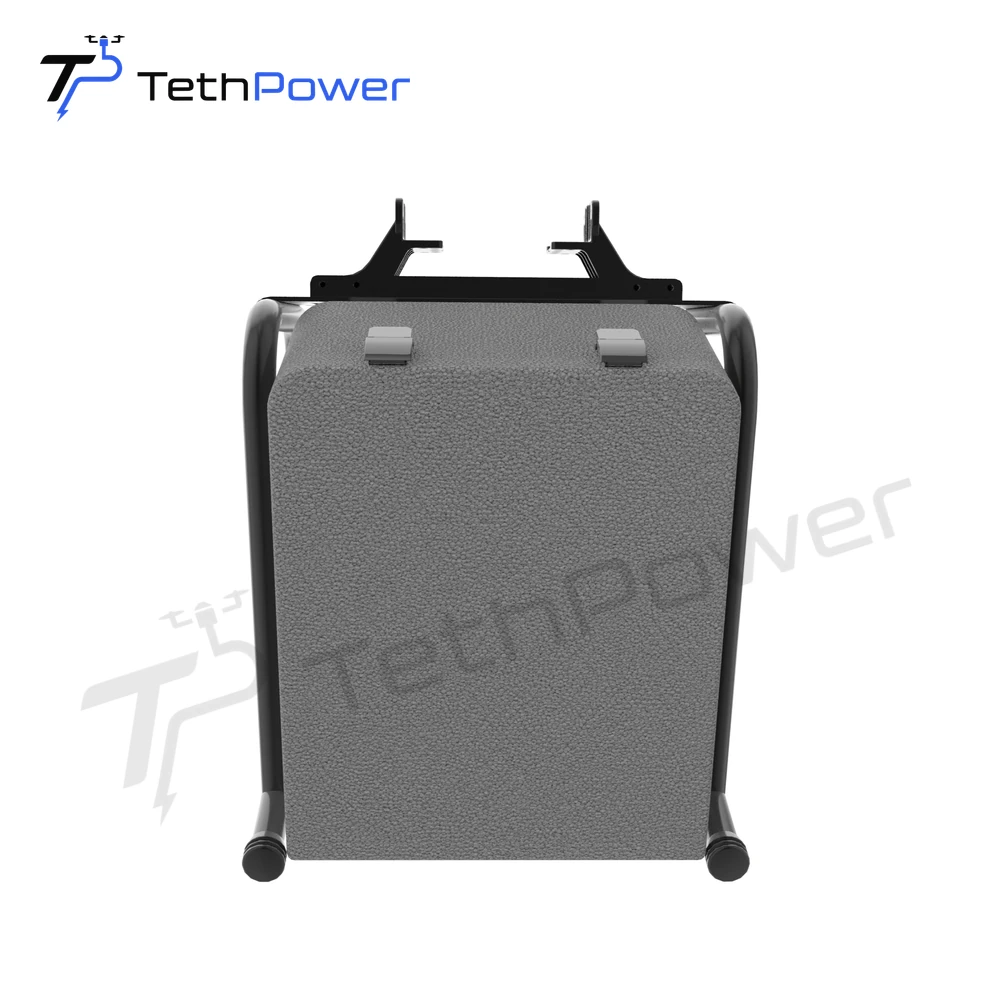

TP-M400 Transport Case is a cargo container designed for DJI Matrice 400. The case has a 17 L capacity and weighs 1.6 kg. An aluminum-alloy frame and EPP cushioning protect the contents during transport.

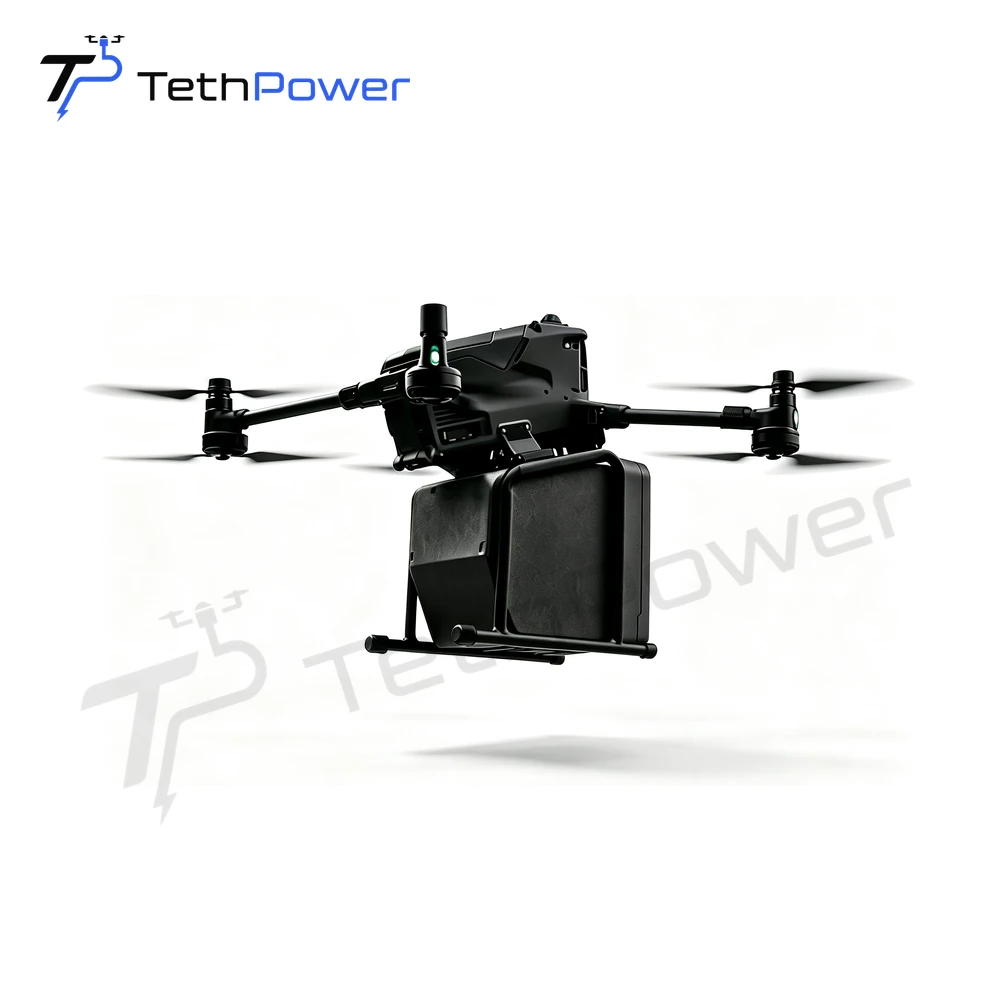

The case mounts below the aircraft using bolts. Its offset structure leaves the downward infrared sensor unobstructed. Confirm cargo weight, balance, attachment security and aircraft operating limits before flight; the case weight is separate from the transported cargo.

Features

• 17 L cargo capacity
• 1.6 kg case weight
• Aluminum-alloy frame with EPP cushioning
• Bolt mounting below DJI Matrice 400 with downward infrared-sensor clearance

Key specifications

Applications

• Emergency supply delivery
• Tools and spare-parts transport to remote work sites
• Small-item logistics where ground access is limited

System selection guidance

Specify the cargo dimensions and weight, aircraft payload margin, mounting arrangement and delivery procedure. Confirm the complete loaded configuration with us before deployment; 17 L describes case volume, not an approved aircraft payload weight.
