Ground Power Station

25kW Tethered Drone Ground Power Station | TP-T25

A portable 25 kW tethered ground power and automatic reel system with 380 VAC three-phase input, 1000 VDC output, and a 120 m cable.

Power class: 25 kW
Input voltage: 380 VAC, three phase
Output voltage: 1000 VDC
User manual: Read Download

Contact Sales

Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.

Chat on WhatsApp

Product details Support & warranty

Overview

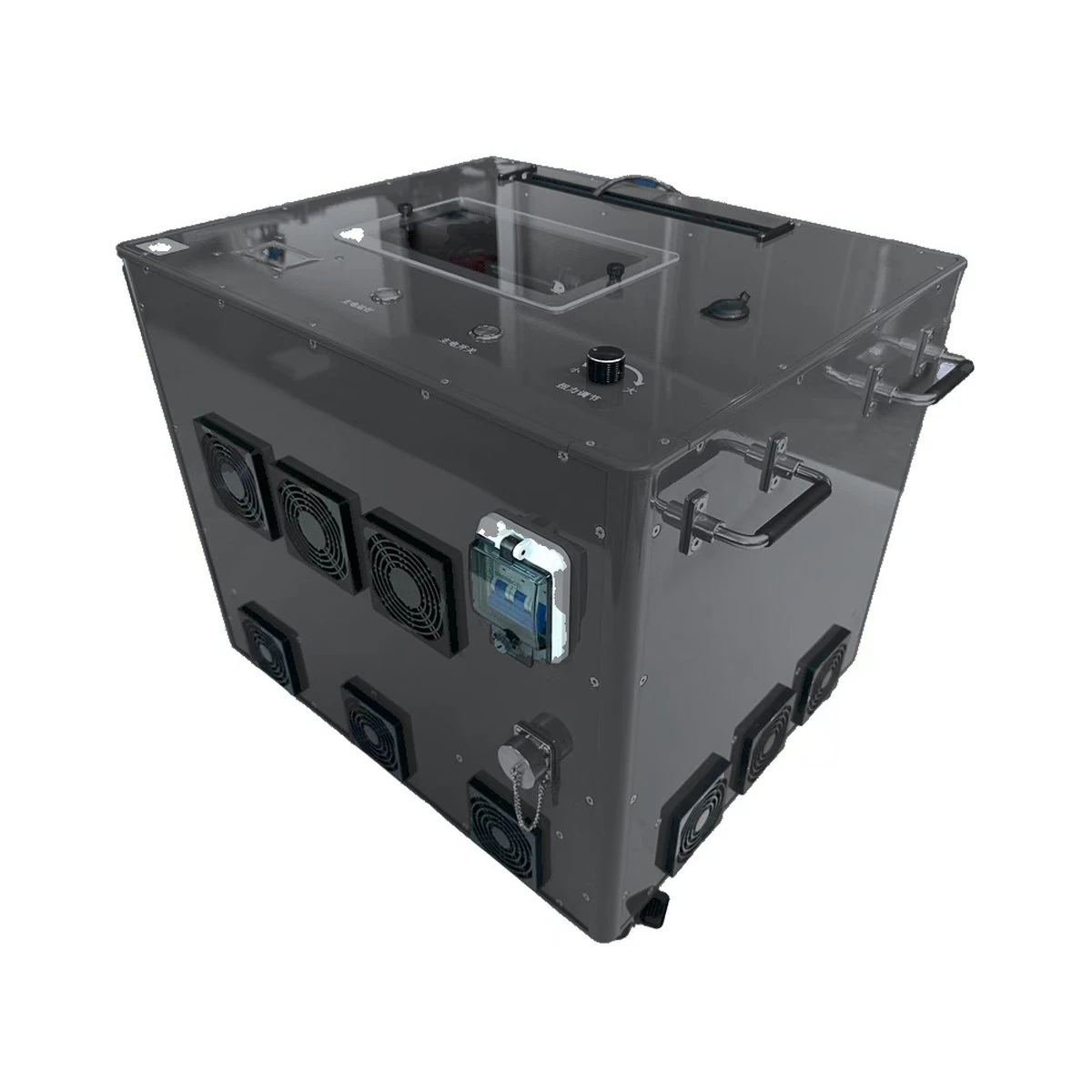

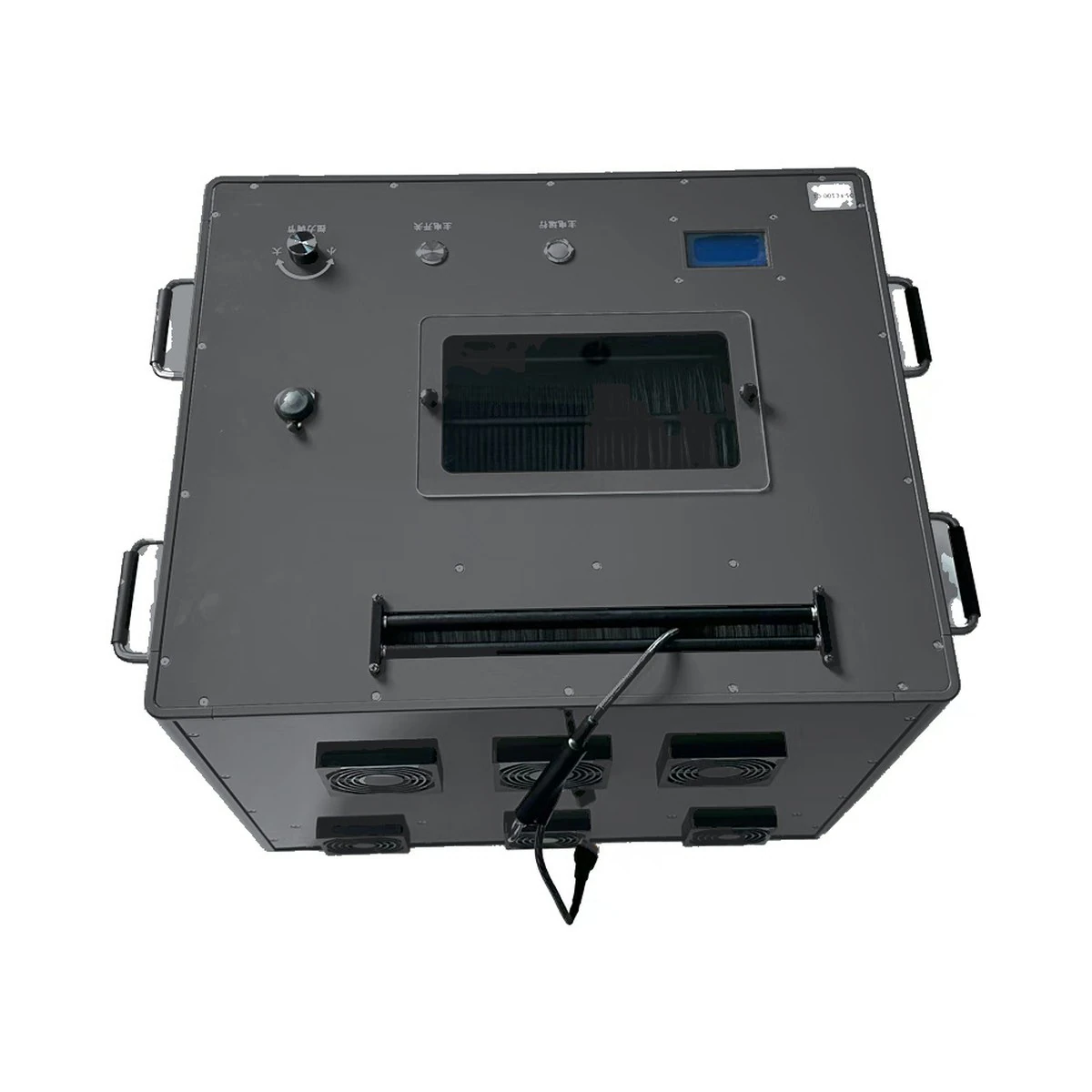

TP-T25 is a tethered ground power station with 25 kW maximum output, 380 VAC three-phase input, 1000 VDC output, recommended onboard power ≤25 kW, a 120 m cable and 55–60 kg weight. TP-T25 integrates a 25 kW ground power supply, control electronics, tether reel, and 120 m tether cable in one portable enclosure. It accepts 380 VAC three-phase input and supplies 1000 VDC through the tether to a compatible onboard power module rated at no more than 25 kW.

TP-T25 also runs on 400 VAC 50 Hz three-phase grids, such as those in Europe; 400 VAC is within its normal input range.

We replaced the earlier TP-T40 Plus with TP-T25. This page address is unchanged; the specifications on this page apply to TP-T25 only.

Features

25 kW maximum ground-side output
1000 VDC tether output from 380 VAC three-phase input
120 m integrated tether cable
Passive payout and active rewind at up to 2 m/s
Integrated output display and rear-panel cooling

Key specifications

Key specifications — 25kW Tethered Drone Ground Power Station | TP-T25
Maximum output power	25 kW
Brand	TethPower
Model	TP-T25
Input voltage	380 VAC, three phase
Output voltage	1000 VDC
Recommended onboard power	≤25 kW
Cable length	120 m
System enclosure	591 × 491 × 575 mm (L×W×H)
Enclosure with handle & panel	620 × 535 × 575 mm (L×W×H)
Weight	55–60 kg
Cable operation	Passive payout / active rewind
Maximum rewind speed	≤2 m/s

FAQ about TP-T25

How is compatibility for TP-T25 confirmed?

Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.

What is included in a quotation for TP-T25?

The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.

Where can I request documents or integration support for TP-T25?

Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.

Downloads

Product manual
