7kW Tethered Drone Ground Power Station | TP-T7

A portable 7 kW tethered ground power station with 220 VAC input, 750 VDC output, a 120 m cable, automatic rewind, and recommended onboard power up to 5 kW.

Power class: 7 kW
Input voltage: 220 VAC
Output voltage: 750 VDC
User manual: Read Download

Contact Sales

Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.

Chat on WhatsApp

Product details Support & warranty

Overview

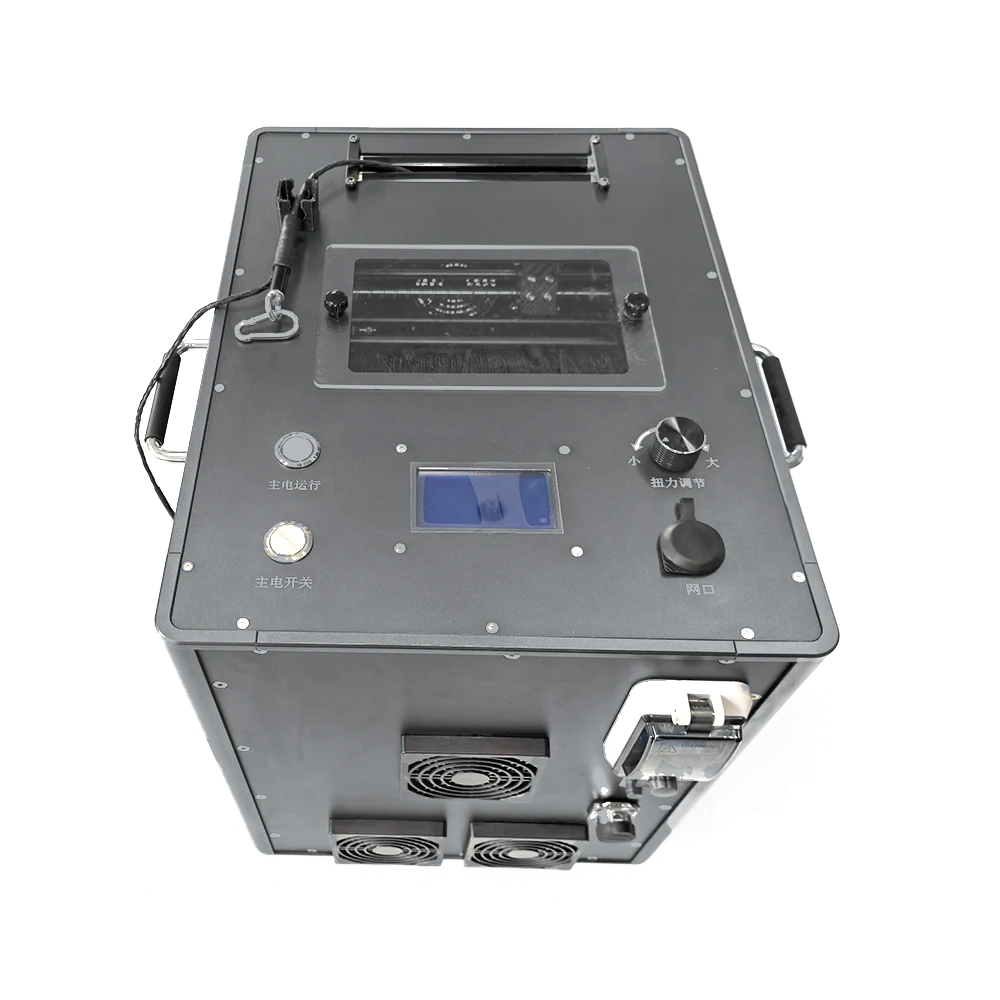

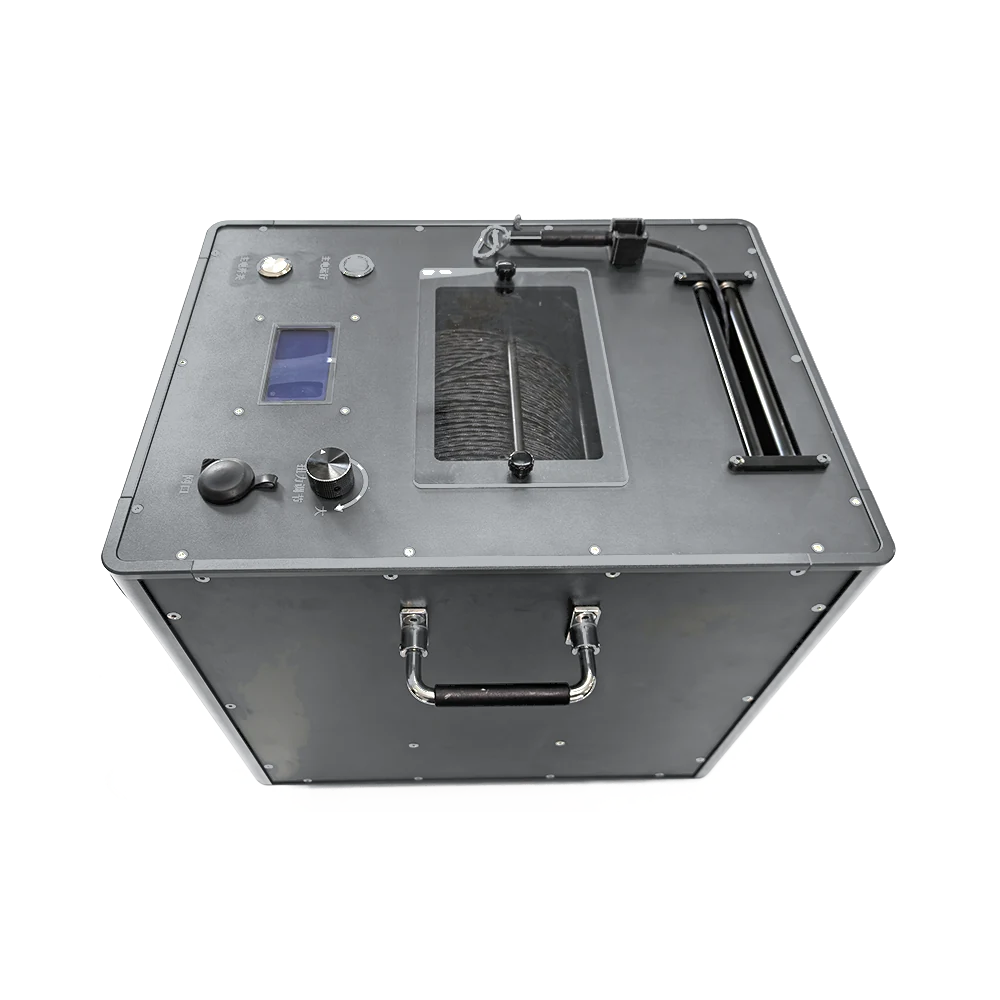

TP-T7 integrates a 7 kW ground power supply, control circuitry, tether reel, and 120 m tether cable in a portable enclosure. It accepts 220 VAC input and delivers 750 VDC through the tether. The recommended onboard power is no more than 5 kW.

The reel supports passive cable payout and powered rewind. Its display reports output voltage, current, power, and input voltage, while the torque control helps maintain cable tension during ascent and descent.

TP-T7 also runs on 230 VAC 50 Hz grids, such as those in Europe; 230 VAC is within its normal input range.

Features

5.5 kW maximum ground-side output
750 VDC tether output from 220 VAC input
Recommended onboard power of ≤5 kW
120 m integrated tether cable
Passive payout and active rewind at up to 2 m/s
Real-time electrical monitoring and adjustable winding torque

Key specifications

Key specifications — 7kW Tethered Drone Ground Power Station | TP-T7
Rated power	7 kW
Brand	TethPower
Model	TP-T7
Input voltage	220 VAC
Output voltage	750 VDC
Recommended onboard power	≤5 kW
Cable length	120 m
System enclosure	425 × 322 × 403 mm (L×W×H)
Overall size with handles	460 × 355 × 420 mm (L×W×H)
Weight	28 ± 0.5 kg
Cable operation	Passive payout / active rewind
Maximum rewind speed	≤2 m/s

FAQ about TP-T7

How is compatibility for TP-T7 confirmed?

Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.

What is included in a quotation for TP-T7?

The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.

Where can I request documents or integration support for TP-T7?

Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
