Overview

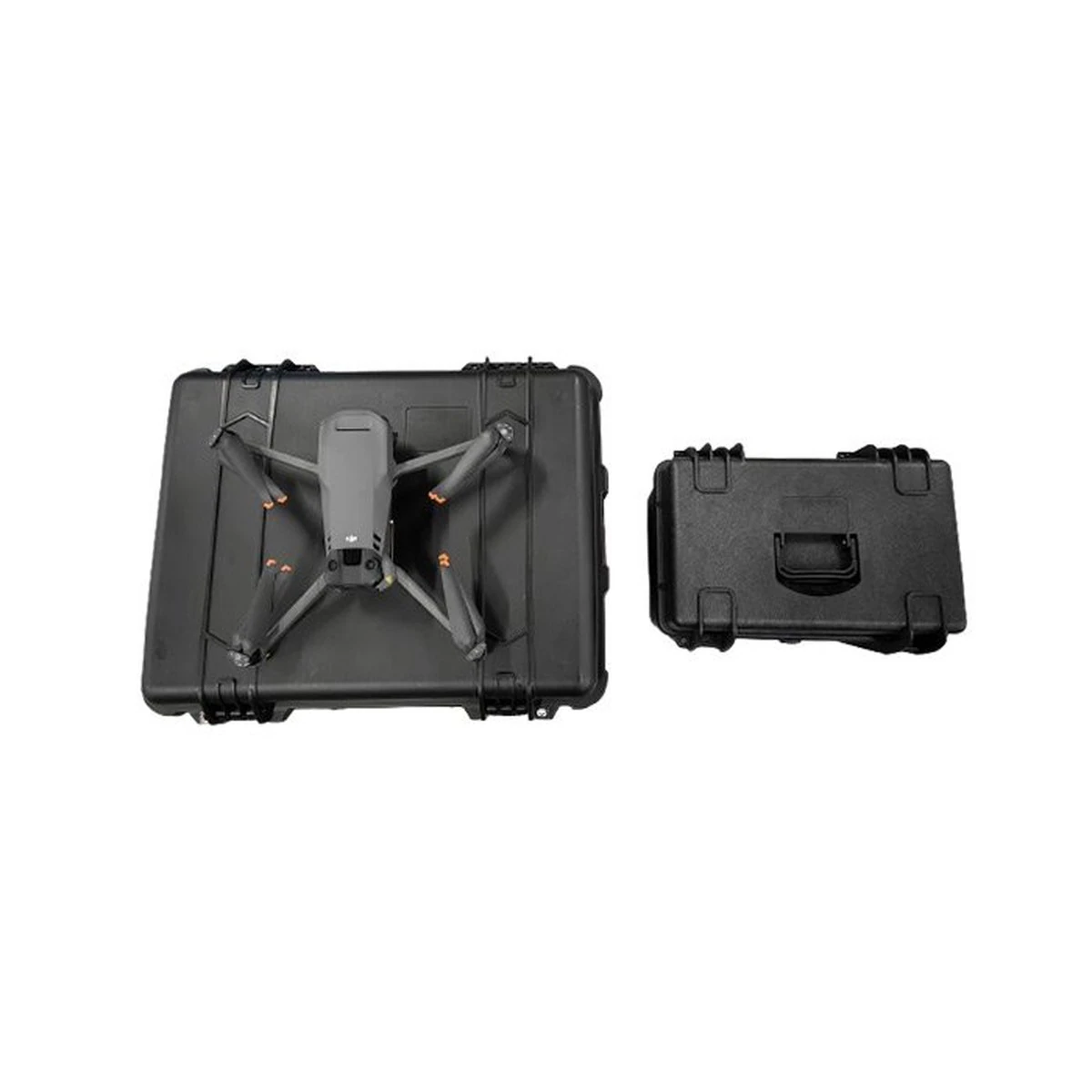

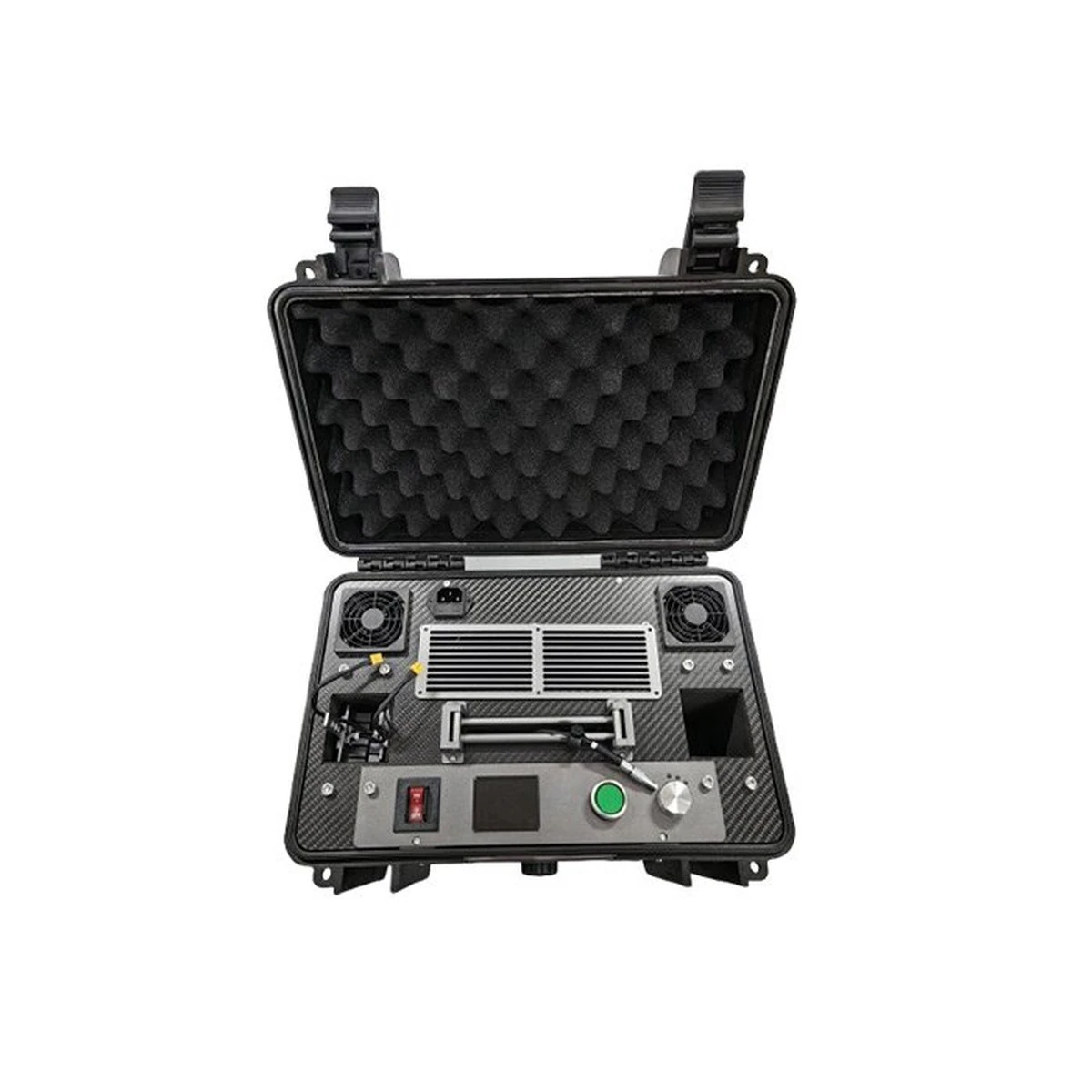

TP-Mavic3 is a tethered lighting system for DJI Mavic 3: 220 V AC, 50 Hz input; ≥ 50 m tether; ≤ 28 kg system weight including energy storage; lighting power 400 W standard / 600 W optional. TP-Mavic3 is a portable tethered lighting system with a lighting module and ground control platform for a DJI Mavic 3 that you supply; the aircraft is not included. The kit uses a one-stop pull-rod case for single-operator deployment and supports mains, generator, or built-in energy-storage power for field emergency lighting.
The drone shown in the product photos is not included.
TP-Mavic3 also runs on 230 VAC 50 Hz grids, such as those in Europe; 230 VAC is within its normal input range.
Features
- Lighting module + control platform for your DJI Mavic 3 (aircraft not included); deployment time ≤ 3 minutes
- Automatic tether pay-out / take-up with high-strength Kevlar-protected cable (≥ 50 m)
- Adjustable telescopic rod (65–170 mm) for lighting payload mounting
- Pull-rod case design for single-soldier operation
- Built-in energy storage supports about 2 hours of emergency lighting flight
- Tethered continuous flight endurance ≥ 12 hours with abnormal-power emergency landing protection
Applications
- Night emergency lighting for public safety and rescue
- Temporary high-area illumination for industrial sites and events
- Persistent aerial lighting where rapid single-operator deployment is required
Key specifications
| Brand | TethPower |
|---|---|
| Compatible platform | DJI Mavic 3 |
| Deployment time | ≤ 3 minutes |
| Tether cable length | ≥ 50 m |
| Case dimensions | 566 mm × 467 mm × 359 mm |
| System weight | ≤ 28 kg (incl. energy storage) |
| Input voltage | 220 V AC, 50 Hz |
| Lighting power | 400 W std / 600 W optional |
| Luminous flux | ≥ 80,000 lm (400 W) / ≥ 120,000 lm (600 W) |
| Illumination area | ≥ 5,000 m² |
| Continuous flight time | ≥ 12 hours (tethered) |
| Emergency storage runtime | ≈ 2 hours lighting flight |
FAQ about TP-Mavic3
How is compatibility for TP-Mavic3 confirmed?
Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.
What is included in a quotation for TP-Mavic3?
The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.
Where can I request documents or integration support for TP-Mavic3?
Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
Downloads
Product manual
DJI Mavic 3 Tethered Power System | TP-Mavic3
