Onboard Power Supply
TP-P18 is an 18kW 50V airborne power module for heavy-lift tethered drones, with 900-1000VDC input, 360A output, 8.2kg weight, IP65 and ≥97% efficiency.
Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.
Products
TethPower TP-P18 is an 18kW airborne power module for heavy-lift tethered UAV platforms requiring a regulated 50V-class output at very high current. It converts 900-1000VDC tether input into 50V output with 360A rated current.
With an 8.2kg net weight, IP65 enclosure and ≥97% efficiency, TP-P18 is designed for aircraft where sustained power capacity and outdoor robustness take priority over lightweight integration.
01
02
| Brand | TethPower | Model | TP-P18 |
|---|---|---|---|
| Input voltage range | 900-1000VDC | Rated output voltage | 50VDC nominal (49.5-50.5VDC range) |
| Rated output current | 360A rated | Rated power | 18kW |

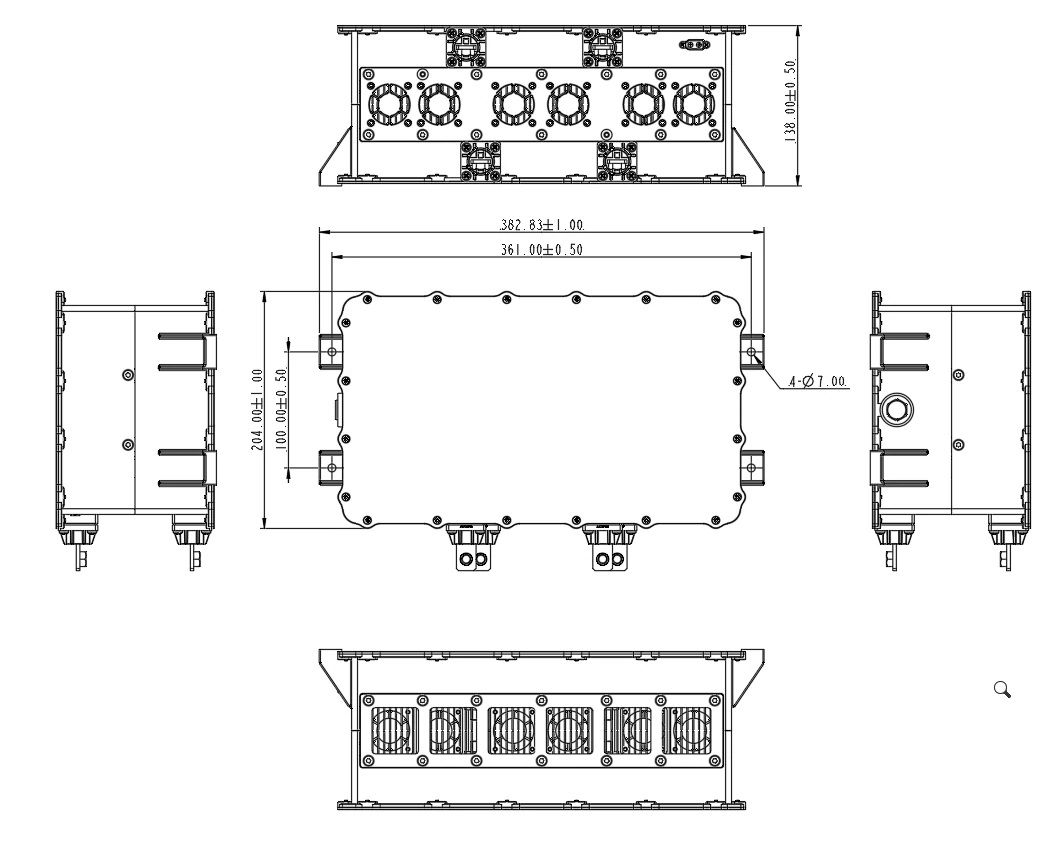

| Peak output power | Not specified in current manual | Dimensions | 383 × 204 × 138mm |
| Weight | 8.2kg | Protection rating | IP65 |
| Operating temperature | -40°C to +55°C | Efficiency | ≥97% |
| Voltage regulation accuracy | ≤±1% | Output ripple and noise | ≤±2% Vo |
| Storage temperature | −40°C to +80°C | Cooling | Integrated forced-air cooling |
03
04
TP-P18 should be selected as part of the complete tethered UAV power chain, not from the kW rating alone. TethPower reviews the aircraft battery/DC-bus voltage, continuous and peak demand, payload, tether length, cable voltage drop, operating altitude, temperature and ground-power architecture before confirming a matched configuration.
05
Answers to common compatibility, configuration, quotation, and delivery questions.
TP-P18 provides a higher confirmed continuous rating at 18kW and uses an IP65 enclosure. It is also larger and heavier, so aircraft payload margin and system need should determine the choice.
The manual specifies 360A rated output at a 50V-class voltage.
No separate peak-power figure is stated in the current manual.
TP-P18 weighs 8.2kg. The complete aircraft calculation should include the module, mission payload, mounting hardware and lifted tether load.
Only after confirming voltage range, continuous power, protection coordination, tether loss and connector/interface compatibility.
