Overview

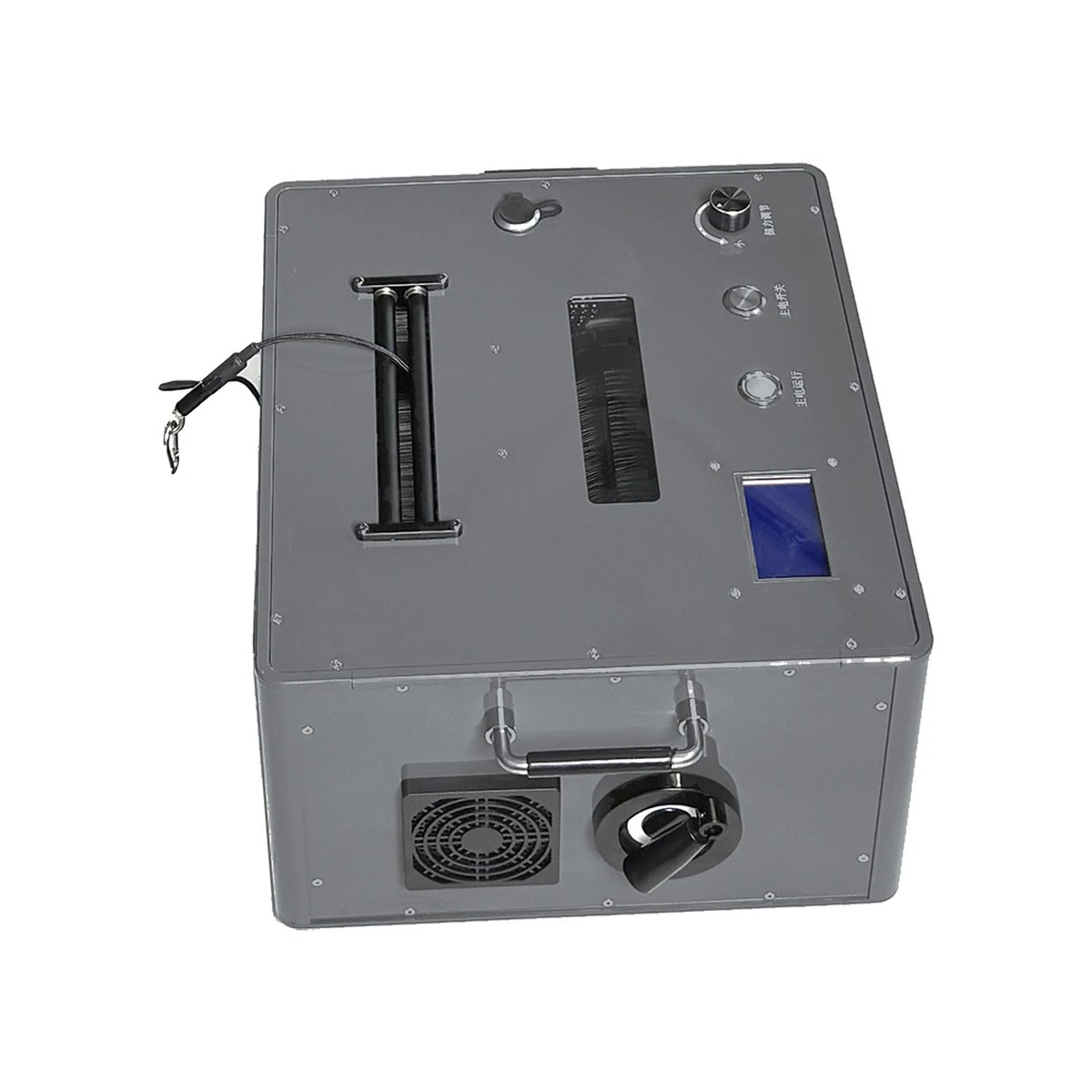

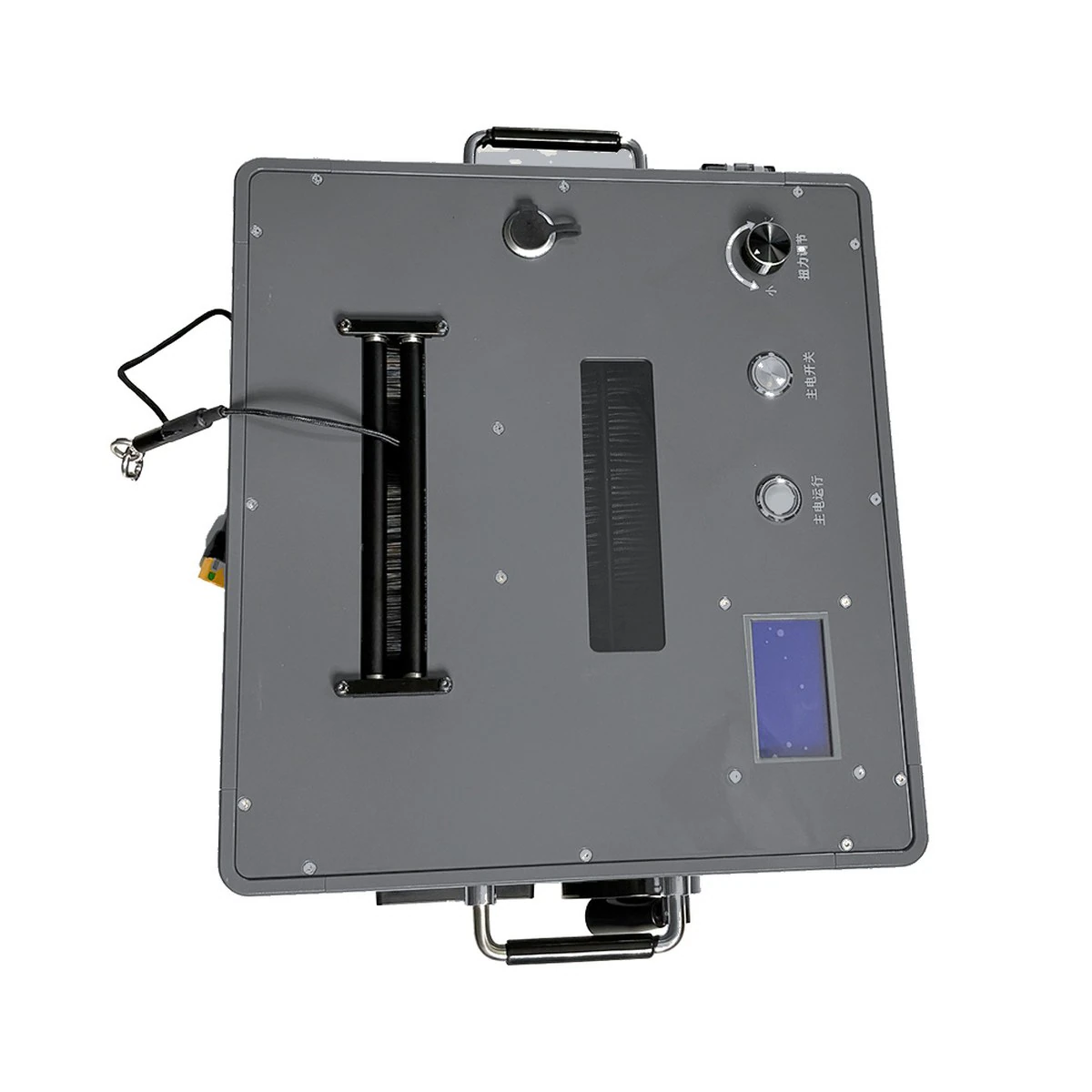

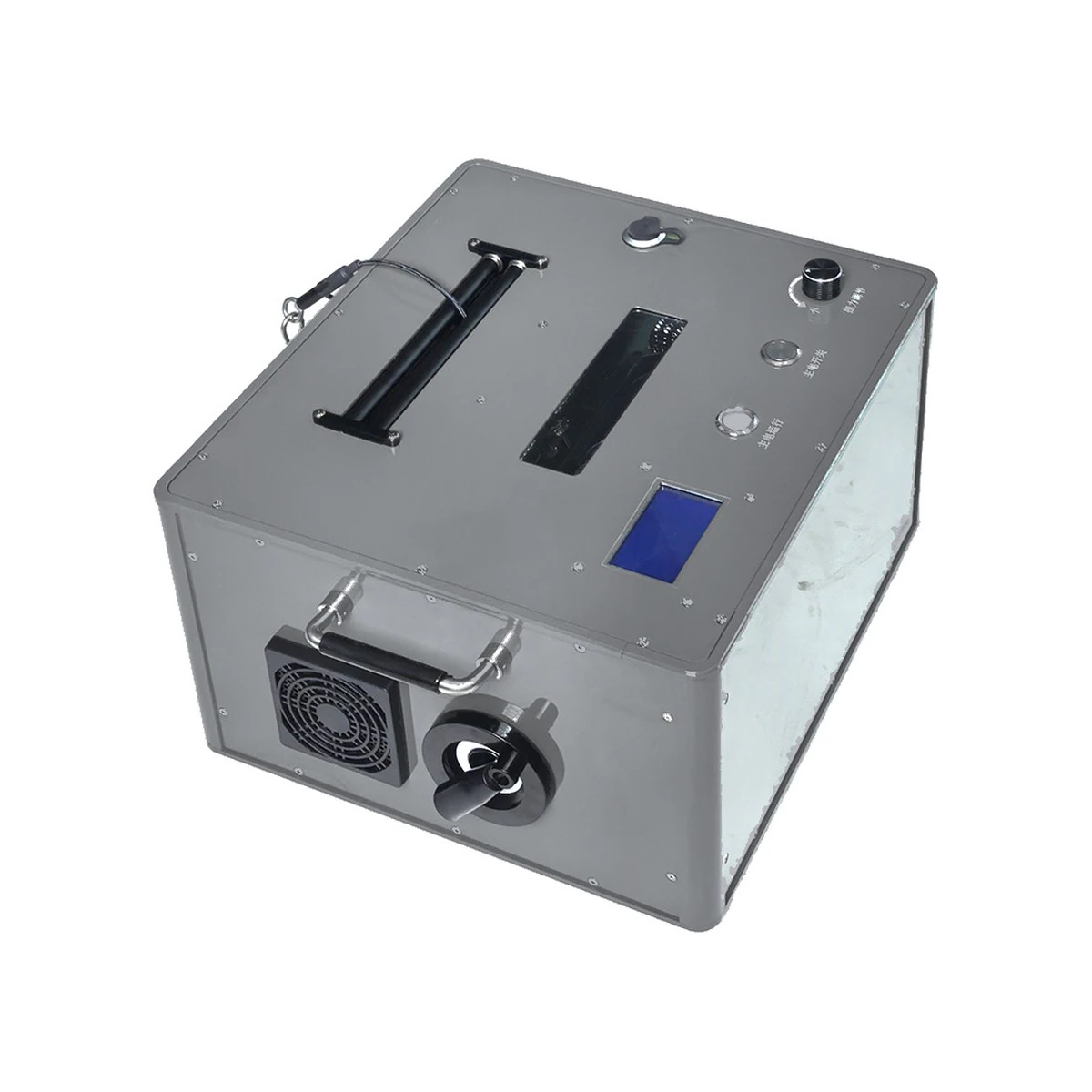

TP-T4H is a tethered ground power station with 4 kW rated power, 4500 W maximum output, AC 220 V input, DC 800 V output, a 110 m cable and 14.5 kg ± 0.1 kg weight. The TP-T4H portable automatic tethered cable pay-in/pay-out system mainly consists of a cable winch, tethered ground power housing, integrated tether cable, and ground power supply.
It provides wired power supply and automatic cable management for tethered UAVs. The winch assembly includes the enclosure, main frame, cable drum, and control circuitry.
Data transmission is not part of the standard configuration. It is an option we add on request, with optical fiber in the tether cable and an optical slip ring. Talk to our sales team about adding it to your system.
TP-T4H also runs on 230 VAC 50 Hz grids, such as those in Europe; 230 VAC is within its normal input range.
Features
- Integrated winch and high-voltage ground power in one portable enclosure
- Passive cable pay-out with active rewind for long-endurance tethered missions
- Front-panel LCD monitoring of output voltage, current, power, and temperature
- Torque-adjustable reeling for takeoff, hover, and recovery in windy conditions
Key specifications
| Rated power | 4 kW |
|---|---|
| Brand | TethPower |
| System enclosure dimensions | 382 mm × 352 mm × 226 mm (L × W × H) |
| Enclosure with handle & panel | 450 mm × 352 mm × 240 mm (L × W × H) |
| Cable length | 110 m |
| Weight | 14.5 kg ± 0.1 kg |
| External power input | AC 220 V |
| Max. cable reeling speed | ≤2 m/s |
| Operating mode | Passive pay-out / Active pay-in |
| Output voltage | DC 800 V |
| Maximum output power | 4500 W |
FAQ about TP-T4H
How is compatibility for TP-T4H confirmed?
Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.
What is included in a quotation for TP-T4H?
The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.
Where can I request documents or integration support for TP-T4H?
Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
Downloads
Product manual
4kW Tethered Drone Ground Power Station | TP-T4H
Need a different voltage, connector or a complete tethered system?Discuss a custom requirement Configure your system
Product support and enquiries
We manufacture tethered UAV power systems and support project-specific system integration and customization.
