Overview

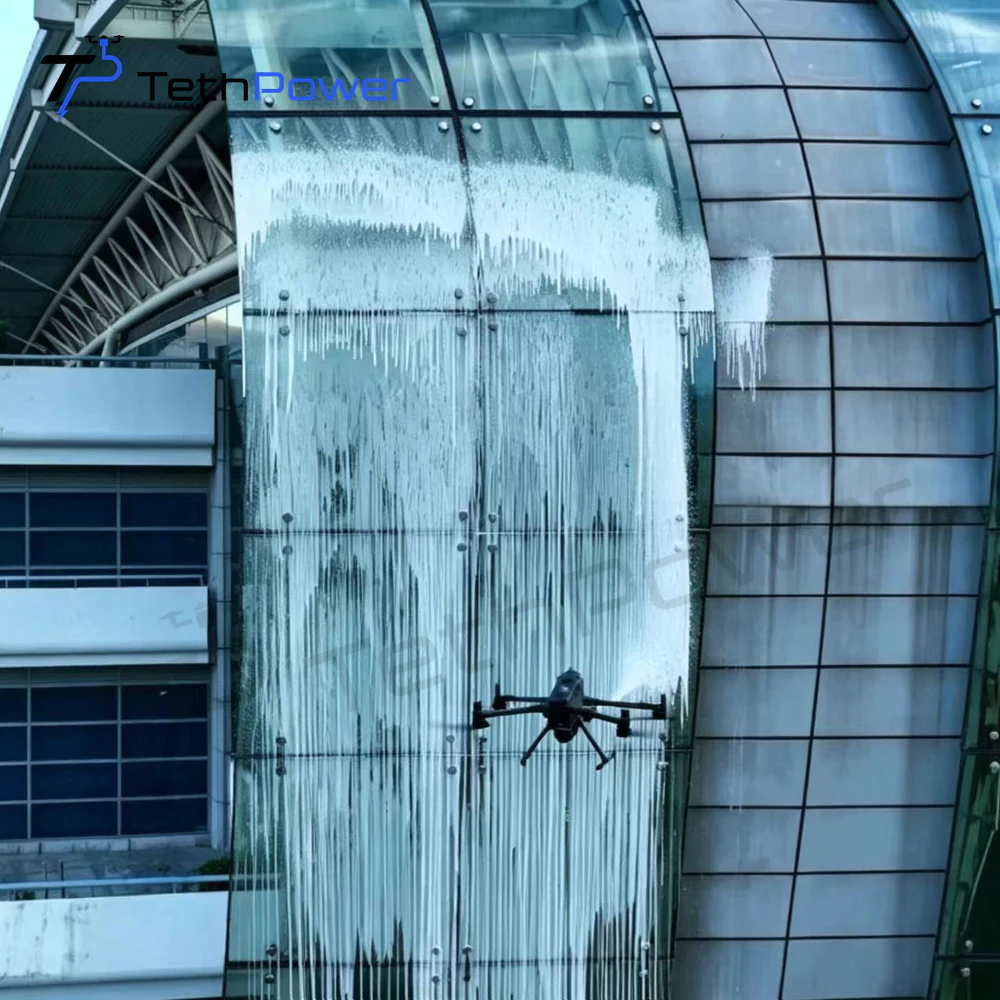

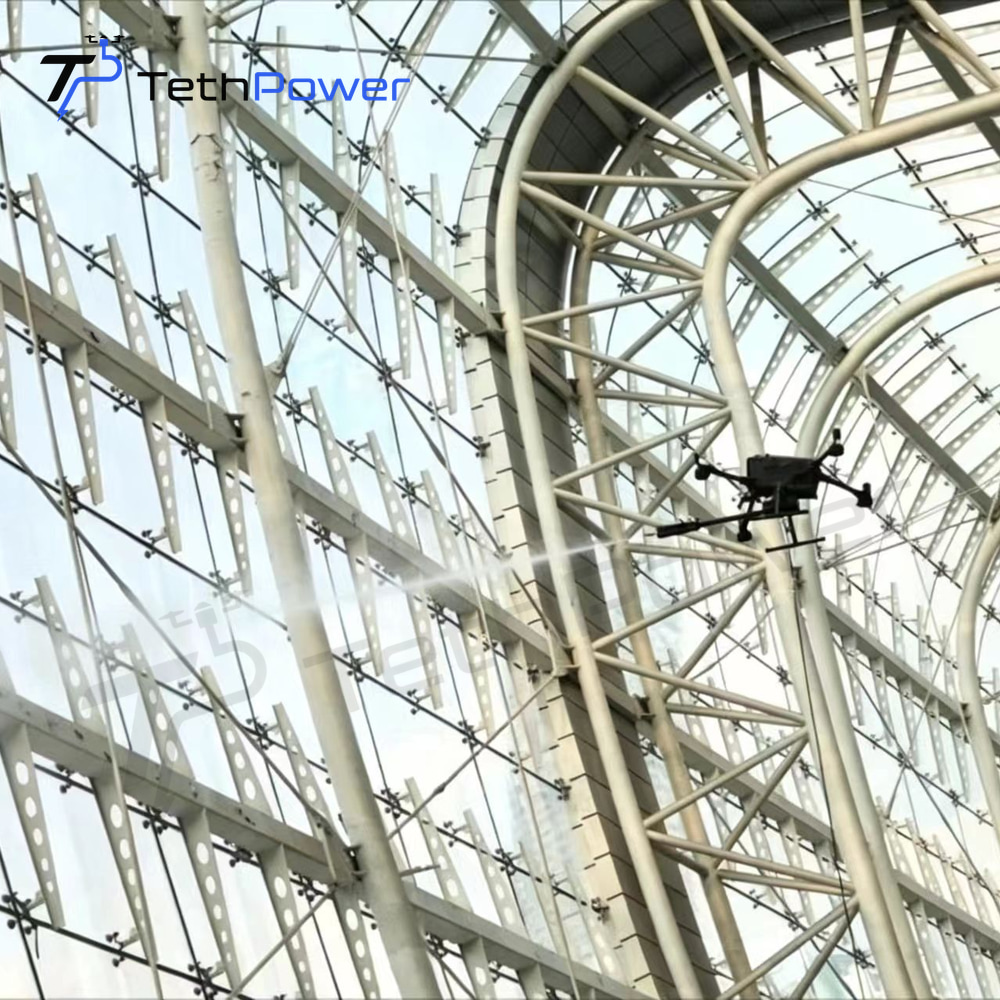

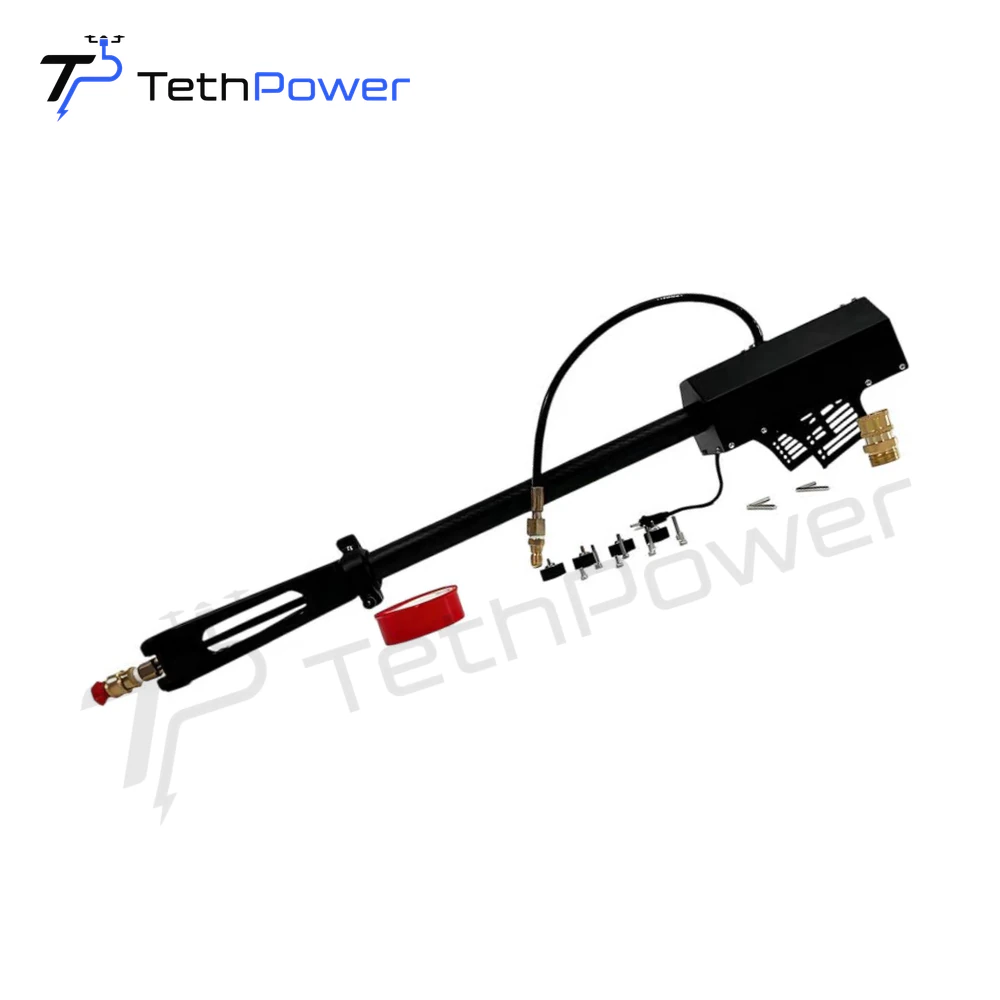

TP-M400-SG2 is a cross oscillation cleaning spray gun designed for DJI M400 curtain-wall cleaning. Its oscillating mechanism extends the spray coverage area. The design aims to improve effective water impact and cleaning efficiency while reducing water use and secondary pollution; no quantified comparison is available for these effects.
The mechanism has a single axis, with a horizontal oscillation angle of 30° or a vertical oscillation angle of 30°. Horizontal oscillation is the default. Stop the equipment before manually adjusting the fixing knob and mounting orientation to change direction. Each setup permits only one direction; the two modes cannot operate simultaneously. Power and communication use the DJI M400 E-Port V2 interface; PSDK connects the accessory to DJI Pilot 2 and the DJI remote controller.
Features
- Selectable horizontal or vertical oscillation on a single axis
- Power and communication through the aircraft accessory interface
- Quick-release nozzle replacement
Product parameters
Scroll horizontally to read the full table
Jet-range test conditions
The shared SG1/SG2 test conditions for the stated 7–10 m jet range are a 2.0 mm nozzle, 10 MPa ground-pump supply, 900 L/h flow, Beaufort force 3 wind and direct spray. This supply pressure is not a rated operating pressure for the complete spray-gun assembly. These conditions do not establish cleaning acceptance.

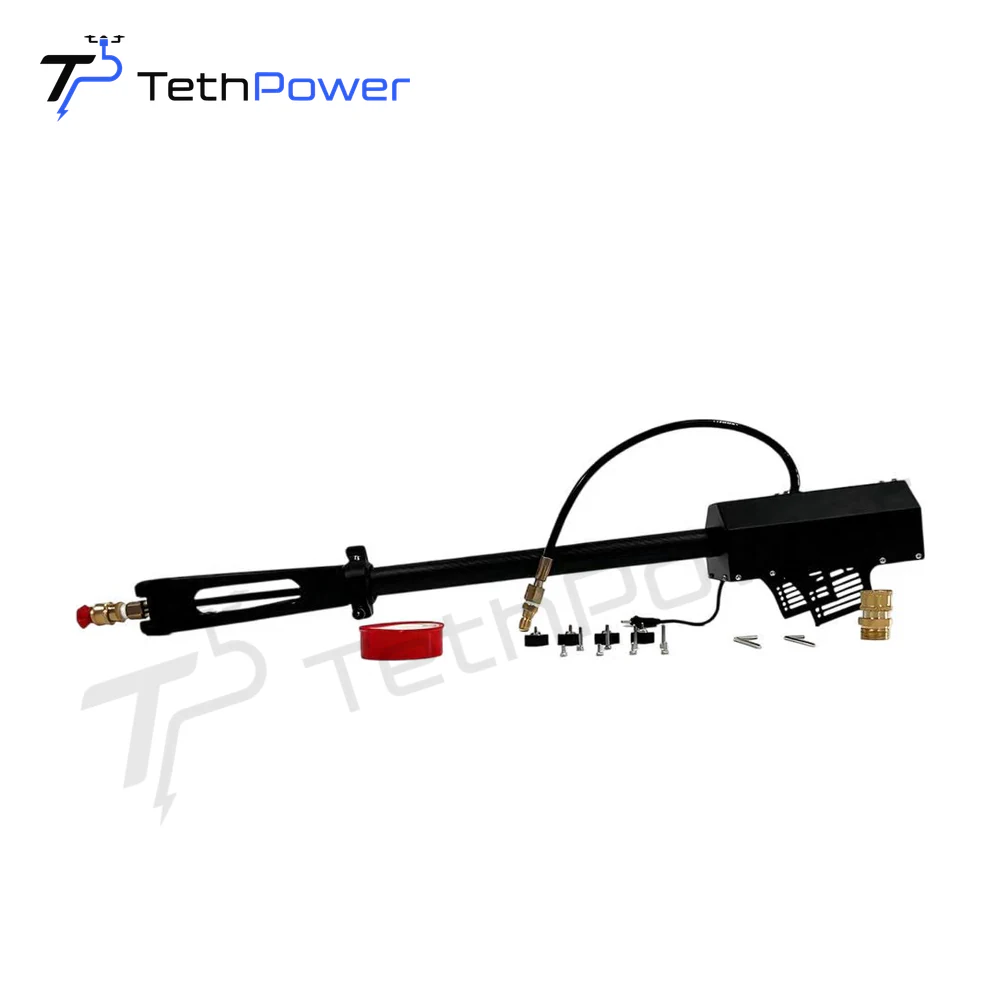

Accessories
Scroll horizontally to read the full table
Matching high-pressure water hoses and specialized cleaning nozzles are optional. Confirm the supplied configuration and the final installation before operation.
Tel / WhatsApp: +86 17714312943
www.tethpower.com
TethPower — Unlimited Power · Unlimited Flight
Key specifications
| Brand | TethPower |
|---|---|
| Model | TP-M400-SG2 |
| Dimensions | 830 × 945 × 131 mm (L×W×H) |
| Weight | 1.2 kg |
| Operating voltage | 24 VDC |
| Power consumption | ≤50 W |
| Operating temperature | -20–45°C |
| Jet range | 7–10 m |
| Control method | PSDK / DJI Pilot 2 |
| Communication interface | DJI M400 E-Port V2 |
| Inlet quick-disconnect outer diameter | 12 mm |
| Discharge port quick-release inner diameter | 12 mm |
FAQ about TP-M400-SG2
How is compatibility for TP-M400-SG2 confirmed?
Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.
What is included in a quotation for TP-M400-SG2?
The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.
Where can I request documents or integration support for TP-M400-SG2?
Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
Downloads
Product manual
TP-M400-SG2 Cross Oscillation Spray Gun
