Tethered Cleaning System / Cleaning Accessories

3.7m Extendable Drone Cleaning Spray Gun | TP-SG02

TethPower TP-SG02 3.7m extendable drone cleaning spray gun

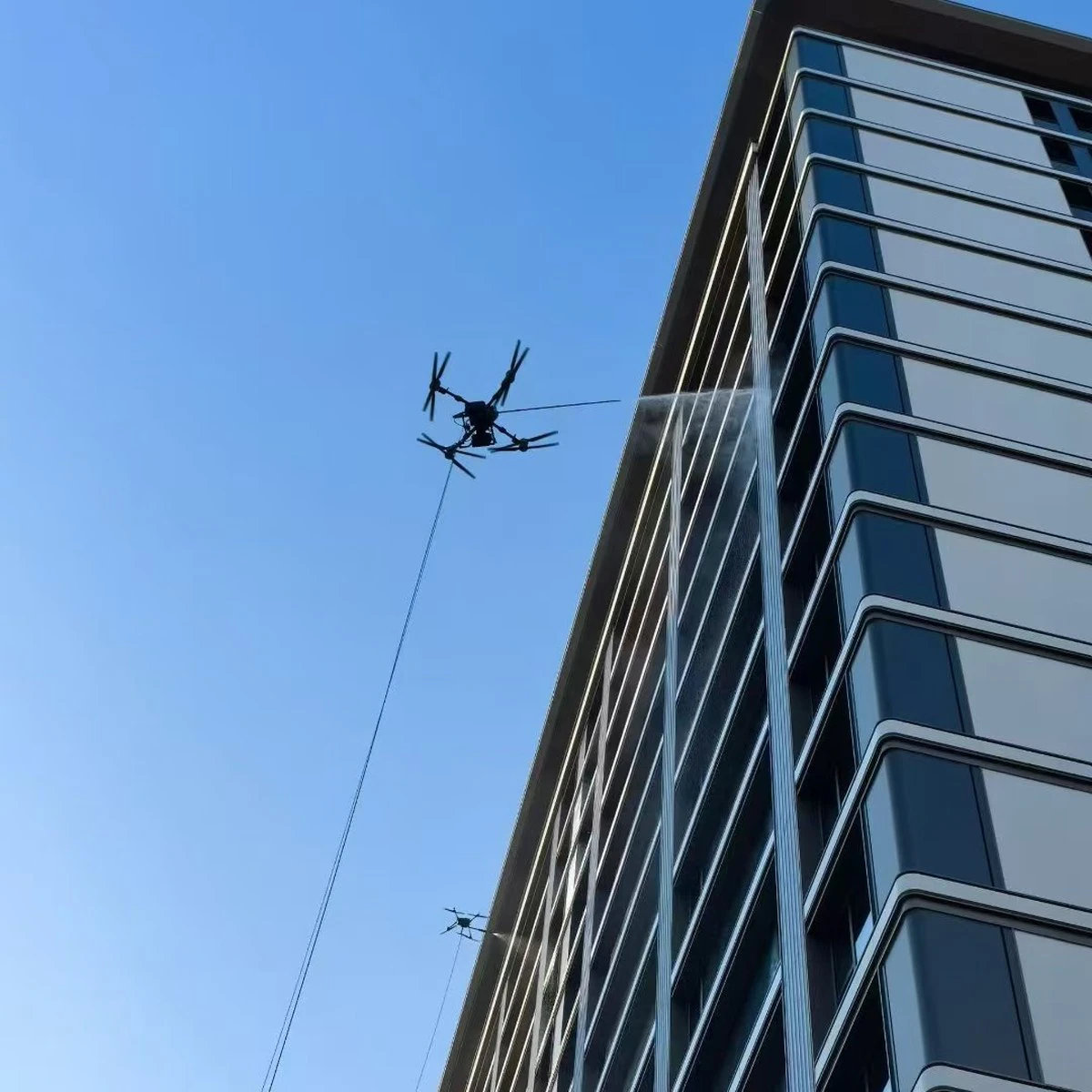

TP-SG02 is a cleaning spray gun accessory for tethered UAV wash systems, supporting industrial cleaning deployments that need a compact airborne spray end-effector.

Minimum folded length: 100 cm
Maximum extended length: 370 cm
Device weight: 1 ± 0.2 kg
User manual: Read Download

Contact Sales

Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.

Chat on WhatsApp

Product details Support & warranty

Overview

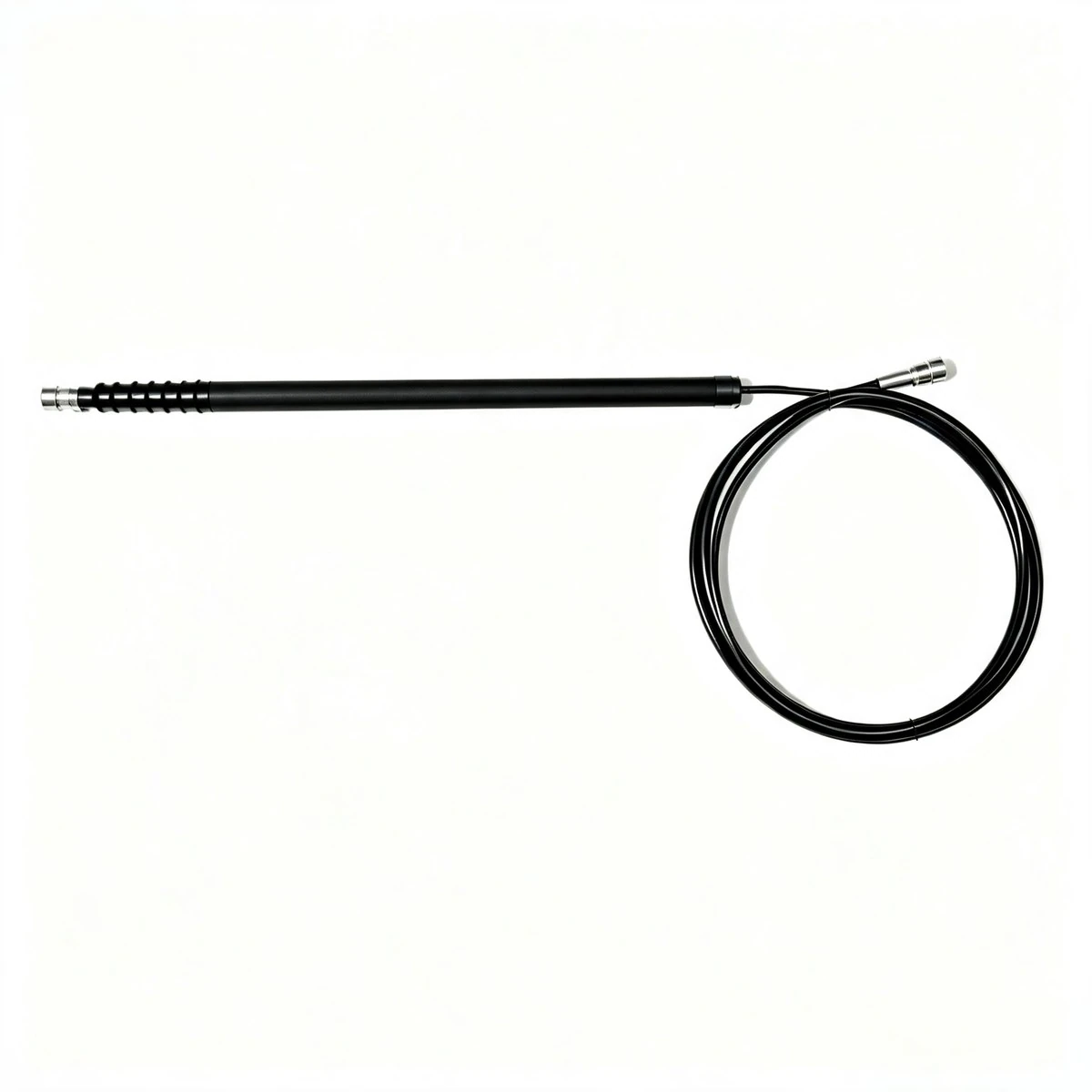

TP-SG02 is an extendable cleaning spray gun with 100 cm minimum folded length, 370 cm maximum extended length, 1 ± 0.2 kg device weight and 25 MPa internal-hose pressure; a nozzle is not included by default. TP-SG02 is an extendable cleaning spray gun for tethered UAV wash systems. It folds to a minimum length of 100 cm and extends to 370 cm, giving operators a compact airborne payload that can be adjusted for different stand-off distances.

The 1 ± 0.2 kg assembly uses a hose rated to 25 MPa and a rotational extension lock. Quick-release nozzle replacement is supported, with 15 mm inlet and 12 mm outlet connector inner diameters; a nozzle is not included by default.

Features

Adjustable length from 100 to 370 cm
25 MPa internal hose pressure rating
Rotational extension lock
Quick-release nozzle interface

Key specifications

Key specifications — 3.7m Extendable Drone Cleaning Spray Gun | TP-SG02
Brand	TethPower
Minimum folded length	100 cm
Maximum extended length	370 cm
Device weight	1 ± 0.2 kg
Internal hose pressure	25 MPa
Extension locking method	Rotational adjustment
Nozzle replacement	Quick-release type
Inlet quick connector inner diameter	15 mm
Outlet quick connector inner diameter	12 mm
Nozzle	Not included by default

FAQ about TP-SG02

How is compatibility for TP-SG02 confirmed?

Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.

What is included in a quotation for TP-SG02?

The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.

Where can I request documents or integration support for TP-SG02?

Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.

Downloads

Product manual
