Overview

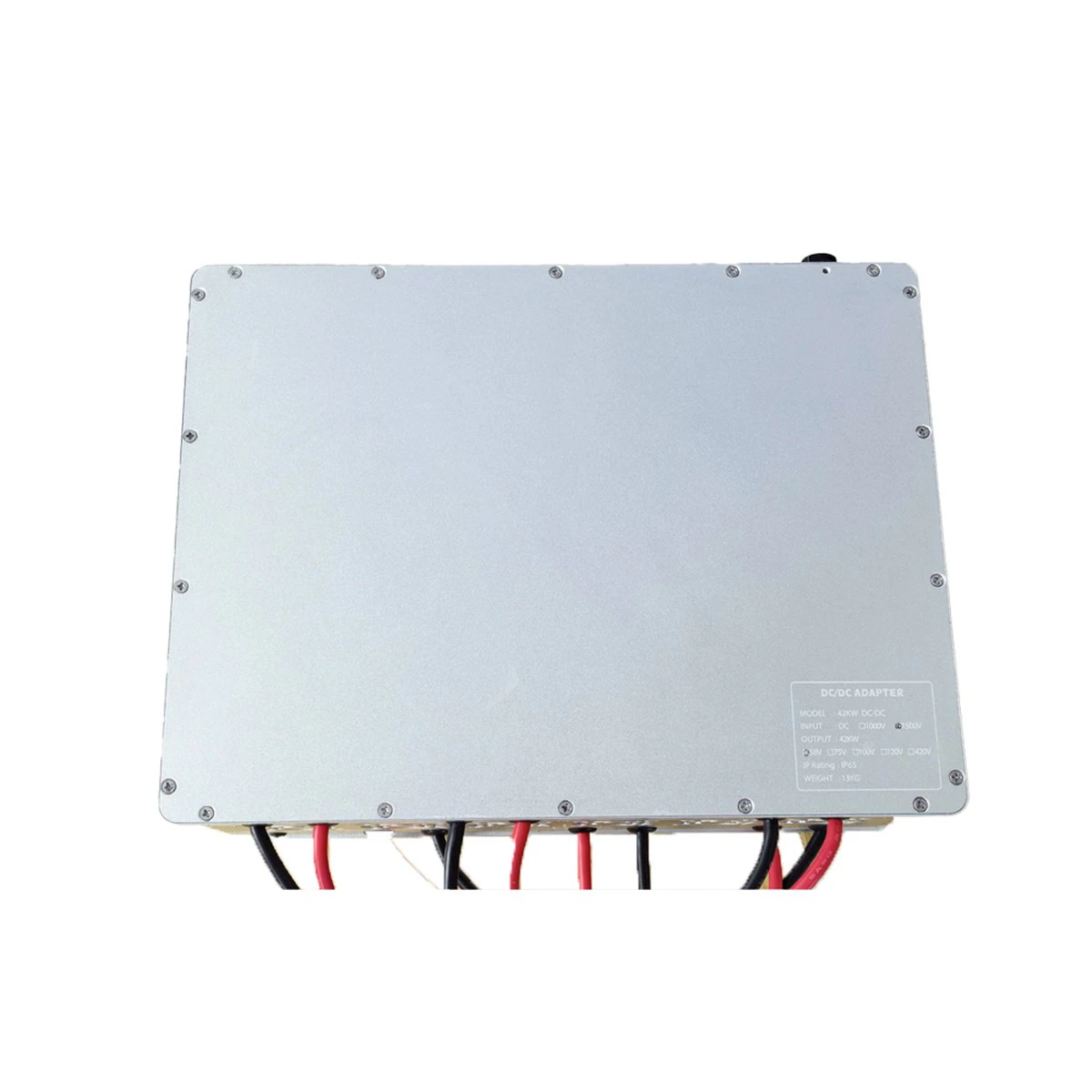

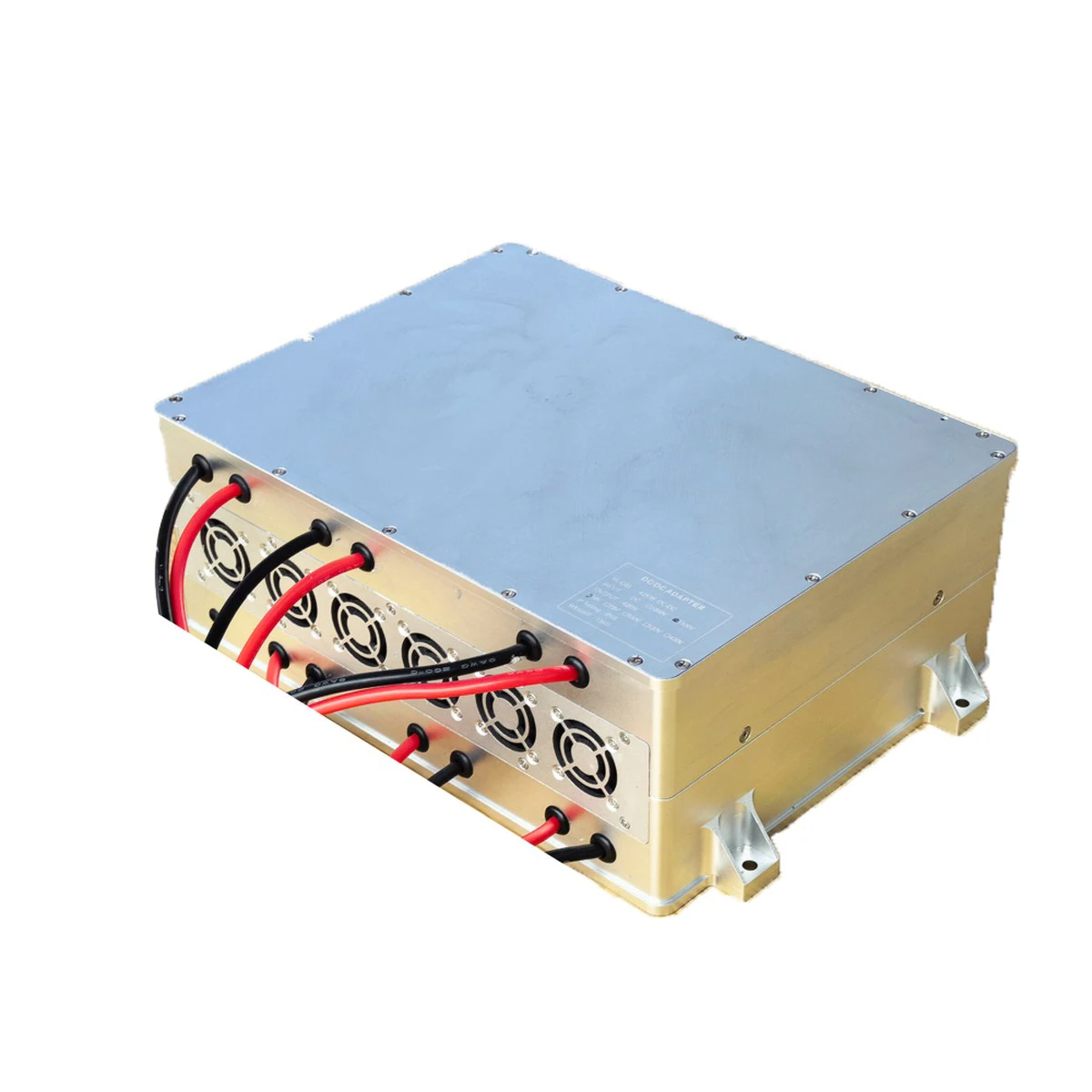

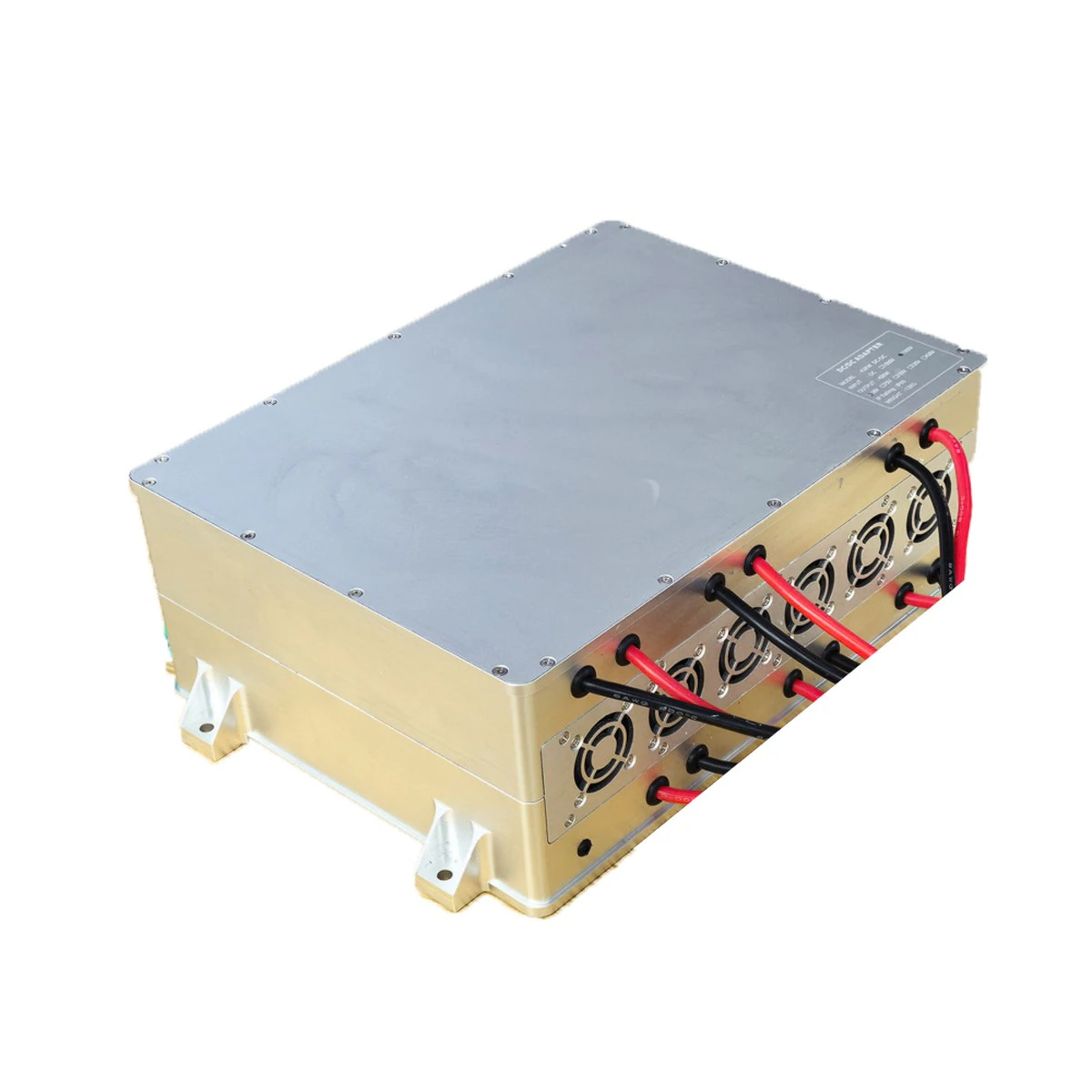

TP-P36 is an airborne DC-DC module with 1200-1450VDC input, 58.5VDC rated output (54-59VDC range), 32kW recommended design power, a 36kW extreme-test value rather than a continuous rating, and approximately 12.5kg weight. TethPower TP-P36 is the highest-power airborne DC-DC module in this product group, designed for heavy-lift tethered UAV platforms with very high propulsion and mission-power demand. The detailed electrical specification defines a 1200-1450VDC tether input and a regulated 58.5V rated output.
Use 32 kW as the actual design power for TP-P36, allowing for conversion losses. The 36 kW value is an extreme-test value, not a continuous rated output. The module weighs approximately 12.5 kg and has IP65 protection with integrated air cooling for high-power industrial UAV integration.
Features
- 32kW recommended actual design power
- 36kW extreme-test value only, not a continuous rating
- 1200-1450VDC tether input to reduce cable-side current at extreme power levels
- IP65 enclosure and integrated air cooling
- Electrical protection and thermal current reduction for high-power field operation
Key specifications
| Brand | TethPower |
|---|---|
| Model | TP-P36 |
| Input voltage range | 1200-1450VDC |
| Rated output voltage | 58.5VDC rated (54-59VDC range) |
| Recommended design power | 32kW |
| Extreme-test output power | 36kW |
| Dimensions | 334 × 251 × 128mm ±1mm |
| Weight | Approx. 12.5kg |
| Protection rating | IP65 |
| Operating temperature | -20°C to +40°C |
| Efficiency | ≥96% |
| Voltage regulation accuracy | ±1% |
| Maximum altitude | 3,000 m |
| MOQ | 1 unit |
| Warranty | 1 year |
For complete electrical characteristics, protection thresholds, EMC/safety data and connector definitions, refer to the product manual. Contact Stella for the current version.
Applications
- Very heavy-lift tethered UAVs
- Large industrial cleaning systems
- Firefighting-support aircraft
- High-power mission platforms
- Custom heavy multirotor and eVTOL test systems
System selection guidance
TP-P36 should be selected as part of the complete tethered UAV power chain, not from the kW rating alone. We review the aircraft battery/DC-bus voltage, continuous and peak demand, payload, tether length, cable voltage drop, operating altitude, temperature and ground-power architecture before confirming a matched configuration.
FAQ about TP-P36
What is the confirmed output voltage of TP-P36?
Rated output voltage is 58.5 V with a 54–59 V output range.
Which output power should be used for system design?
Use 32kW for actual system design. The 36kW value is an extreme-test value only and must not be used as a continuous rated output.
Why does TP-P36 use a 1200-1450VDC tether input?
At very high power, increasing transmission voltage reduces tether-side current, which helps manage conductor size, voltage drop and cable weight.
What aircraft class can carry TP-P36?
The module weighs about 12.5kg before mounting hardware and tether load are considered. It is intended only for heavy-lift aircraft with adequate payload and propulsion margin.
Does the operating temperature range establish a continuous 36kW rating?
No. The operating temperature range does not establish a continuous 36kW rating. Use 32kW for actual design and evaluate the installed cooling conditions.
