Overview

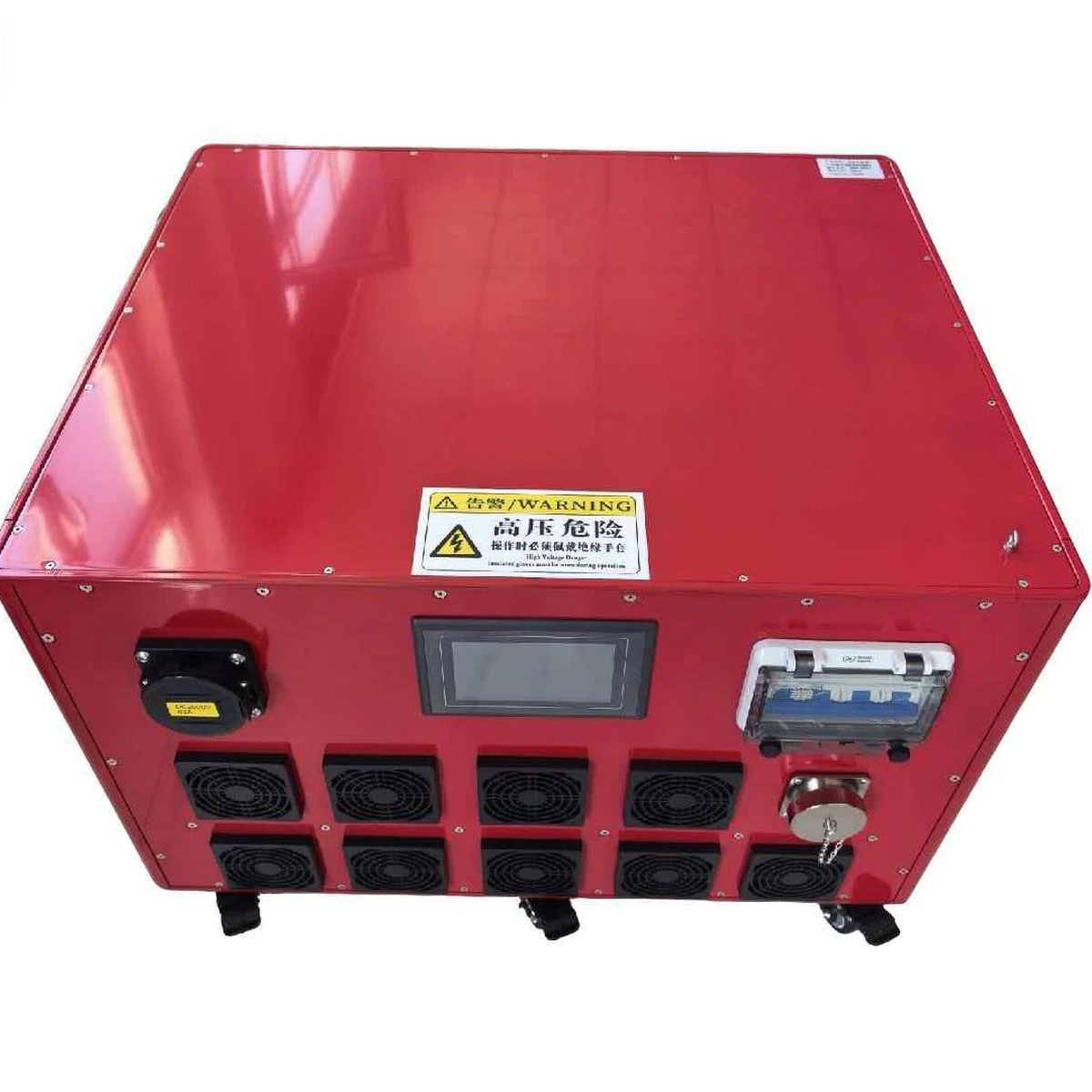

TP-ST60 is a ground power station with 60 kW rated output, 380 VAC three-phase plus neutral input, 1500 VDC default maximum standard-system voltage, a 120–200 m cable (configuration dependent), an 80 kg power enclosure and a 55–65 kg winch enclosure; confirm any other voltage with us before choosing an airborne module. TP-ST60 separates the 60 kW power-conversion enclosure from the tether winch enclosure for high-power deployment and cable management. The power unit accepts 380 VAC three-phase plus neutral and provides a tether output with 1500 VDC as the default maximum voltage for the standard system, with 1500 VDC and 40 A as the version 2.2 defaults.

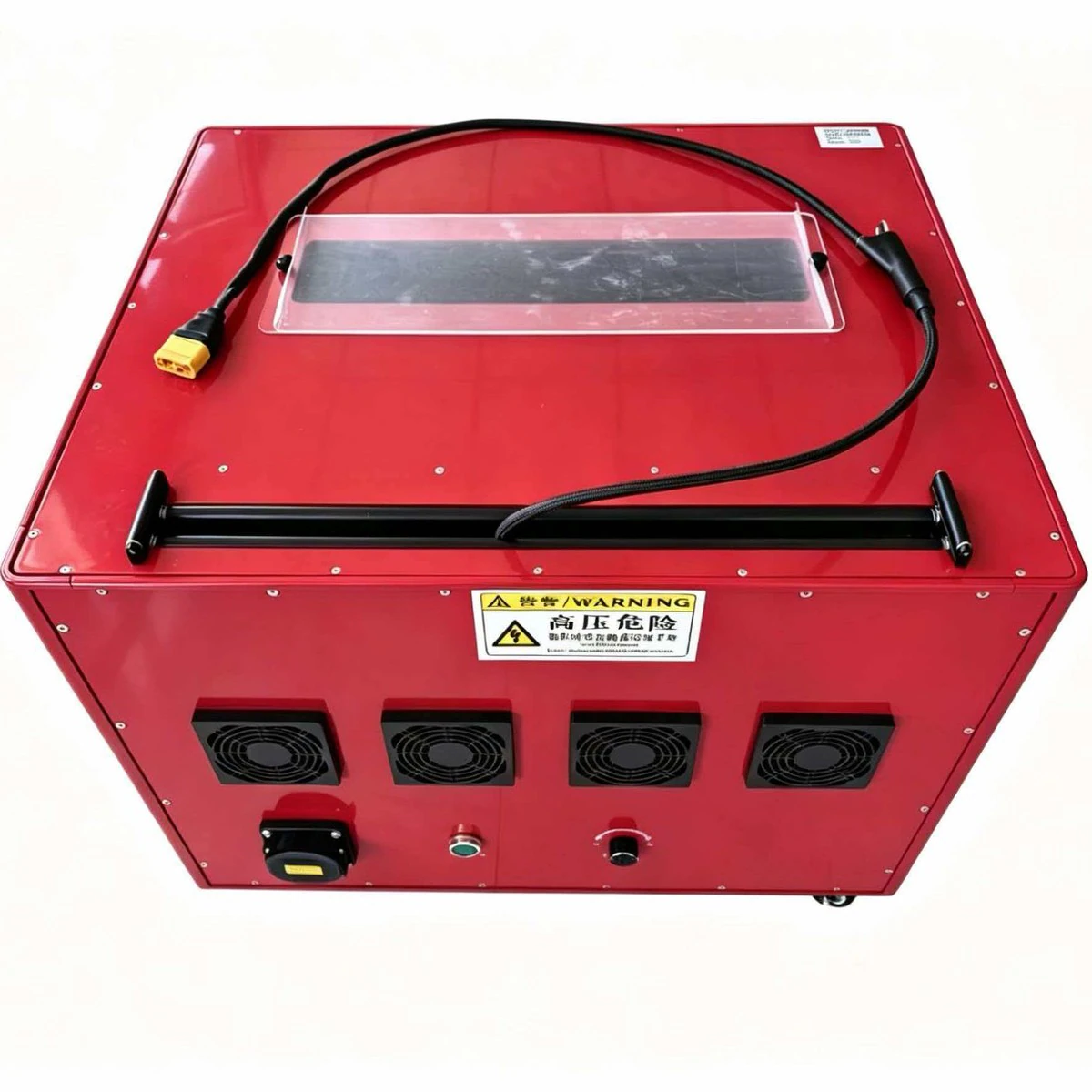

The winch supports configuration-dependent cable lengths from 120 to 200 m, passive payout, powered rewind, cable routing, and cooling.
The default maximum system voltage is 1500 VDC; confirm any other voltage with us before choosing an airborne module.
TP-ST60 also runs on 400 VAC 50 Hz three-phase grids, such as those in Europe; 400 VAC is within its normal input range.
Features
- 60 kW rated ground-side output
- 1500 VDC default maximum voltage for the standard system
- Version 2.2 output-current setting of 30–40 A with 40 A default
- Separate power and winch enclosures
- 120–200 m tether configurations with passive payout and active rewind
Key specifications
| Rated output power | 60 kW |
|---|---|
| Brand | TethPower |
| Model | TP-ST60 |
| Input voltage | 380 VAC, three phase + neutral |
| Output voltage | 1500 VDC |
| Output current setting | 30–40 A |
| Factory-default output | 1500 VDC / 40 A |
| Power enclosure | 740 × 630 × 498 mm (L×W×H) |
| Power enclosure weight | 80 kg |
| Winch enclosure | 740 × 620 × 568 mm (L×W×H) |
| Winch enclosure weight | 55–65 kg (140 m / 40 A: 59 kg) |
| Cable length | 120–200 m, configuration dependent |
| Cable rated current | 25–50 A |
| Operating voltage | 1500 VDC |
| Cable operation | Passive payout / active rewind |
| Maximum rewind speed | ≤2 m/s |
| Operating temperature | −20°C to +45°C |
FAQ about TP-ST60
How is compatibility for TP-ST60 confirmed?
Send the exact aircraft version, payload voltage and continuous power, connectors, operating height, tether requirement, and ground input. We review the complete power chain before confirming a configuration.
What is included in a quotation for TP-ST60?
The offer identifies the proposed model and configuration, included and optional equipment, current lead time, and shipping terms. Confirm the final scope before placing an order.
Where can I request documents or integration support for TP-ST60?
Use the website inquiry form, WhatsApp, phone, email, or live chat. Include this page link and the mission requirements so the response can address the specific configuration.
