70kW 116V Tethered Drone Power Supply | TP-P70

TethPower TP-P70 heavy-lift power module fan face

TP-P70 is a 70kW high-voltage isolated DC/DC module with 1600–2000VDC input, 116VDC output, 600A rated current and IP65 protection.

Power class: 70 kW
Input voltage range: 1600–2000VDC
Rated output voltage: 116VDC (110–118VDC)
User manual: Read Download

Contact Sales

Contact Stella directly to discuss aircraft compatibility, payload power, tether length, mission equipment, and quotation requirements.

Chat on WhatsApp

Product details Support & warranty

Overview

TP-P70 is an isolated DC/DC module with 1600–2000VDC input, 116VDC rated output (110–118VDC range), 70kW rated power, 72kW continuous operation requiring power-supply enclosure temperature ≤35°C, and ≈22kg weight; it is mostly used on firefighting drones; we usually customize the ground power station to project requirements. TP-P70 is a high-power isolated DC/DC module for heavy-lift tethered UAV architectures requiring a 116V-class aircraft bus. The manual specifies a 1600–2000VDC tether input, 116VDC rated output and a 110–118VDC output range.

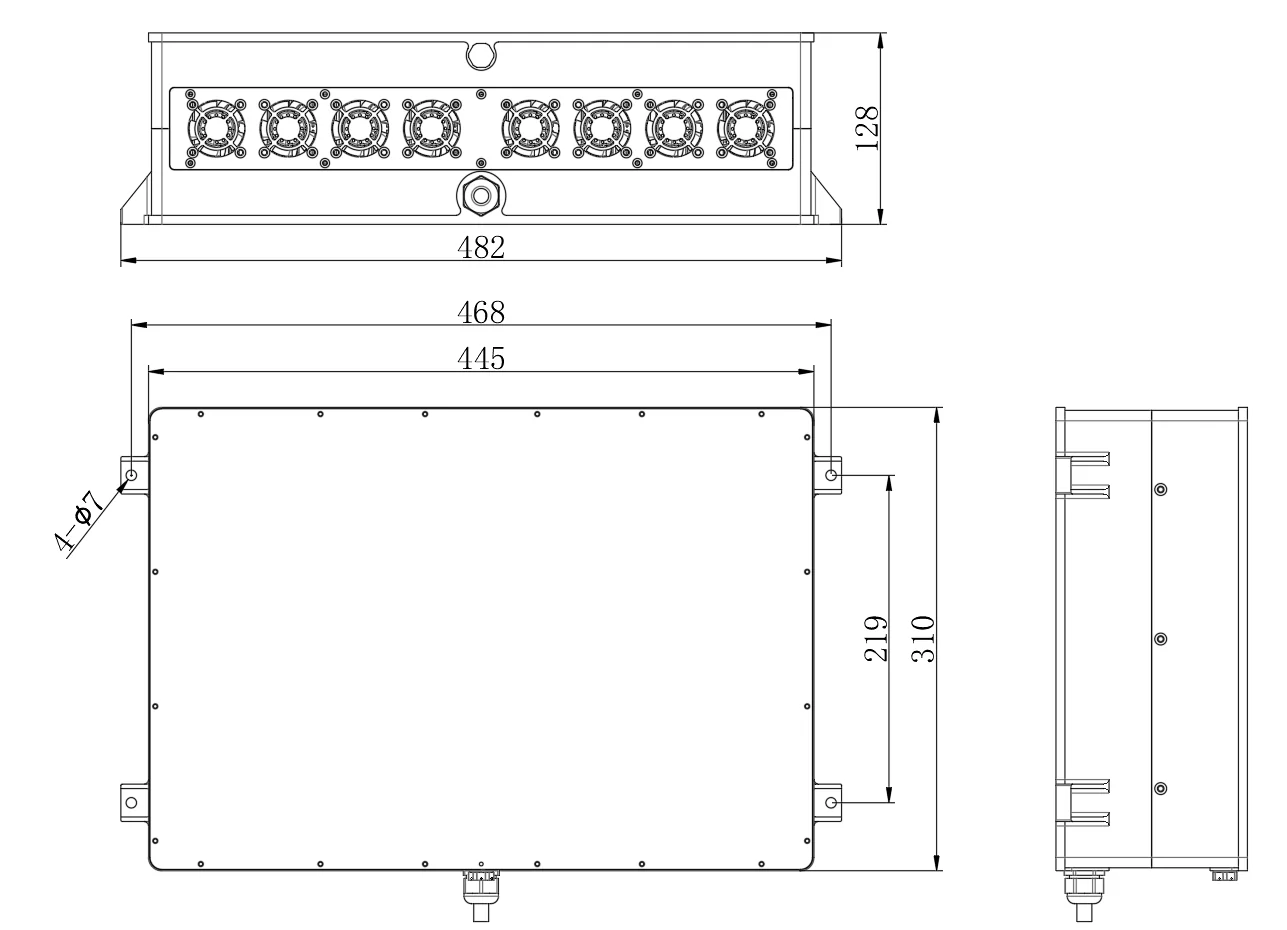

The rated output is 70kW with 600A rated output current. Continuous operation at 72kW requires the power-supply enclosure temperature to remain ≤35°C. The IP65 aluminum enclosure uses fan-regulated forced-air cooling and measures 442 × 308 × 128mm ±1mm, with an approximate net weight of 22kg.

These high-power modules are mostly used on firefighting drones. We usually customize the ground power station for them to the project's requirements.

Features

70kW rated output; 72kW continuous operation with enclosure temperature ≤35°C
1600–2000VDC input and 116VDC regulated output for high-power aircraft bus integration
600A rated output current and ≥97% efficiency at 1900VDC and 50% load
IP65 enclosure with built-in fan-regulated forced-air cooling
DSP-based design with CAN communication support stated in the product manual
Output protection, short-circuit tolerance and thermal current reduction described in the electrical specification

Key specifications

Key specifications — 70kW 116V Tethered Drone Power Supply | TP-P70
Brand	TethPower
Model	TP-P70
Input voltage range	1600–2000VDC
Rated output voltage	116VDC (110–118VDC)
Rated output current	600A
Rated power	70kW
Efficiency	≥97%
Voltage regulation accuracy	±1%
Output ripple and noise	≤1200mVp-p
Dimensions	442 × 308 × 128mm ±1mm
Weight	≈22kg
Protection rating	IP65
Operating temperature	-20°C–+40°C
Storage temperature	-40°C–+80°C
Maximum altitude	3,000m
Cooling	Forced-air cooling
Communication	CAN

Applications

Heavy-lift tethered UAV platforms with a compatible 116VDC power bus
High-power industrial aerial mission systems
Custom multirotor and eVTOL development projects
Parallel high-power DC/DC architectures subject to project engineering review

System selection guidance

TP-P70 is a high-mass, high-voltage module and must be selected as part of the complete aircraft, tether and ground-power architecture. Confirm the 116V bus range, continuous and peak demand, aircraft payload and center of gravity, cooling path, 1600–2000VDC transmission chain, insulation, connector ratings, emergency behavior and site conditions before installation.

FAQ about TP-P70

What power and temperature limits apply to TP-P70?

TP-P70 is rated at 70kW. Continuous operation at 72kW requires the power-supply enclosure temperature to remain ≤35°C. No peak-power rating is specified.

What output voltage range does TP-P70 support?

The manual specifies 116VDC rated output with a 110–118VDC output range. Compatibility must be checked against the real aircraft bus, battery and control-system limits.

Can TP-P70 modules be paralleled?

The product manual describes dynamic current balancing and scalability, including power extension beyond 200kW. The final number of modules, sharing method, wiring and fault coordination require engineering confirmation.

What thermal and environmental limits apply?

The manual specifies IP65 protection, built-in air cooling, -20°C to +40°C operating temperature and a 3,000m maximum altitude. Actual continuous power depends on the installed cooling path and site conditions.
