Overview

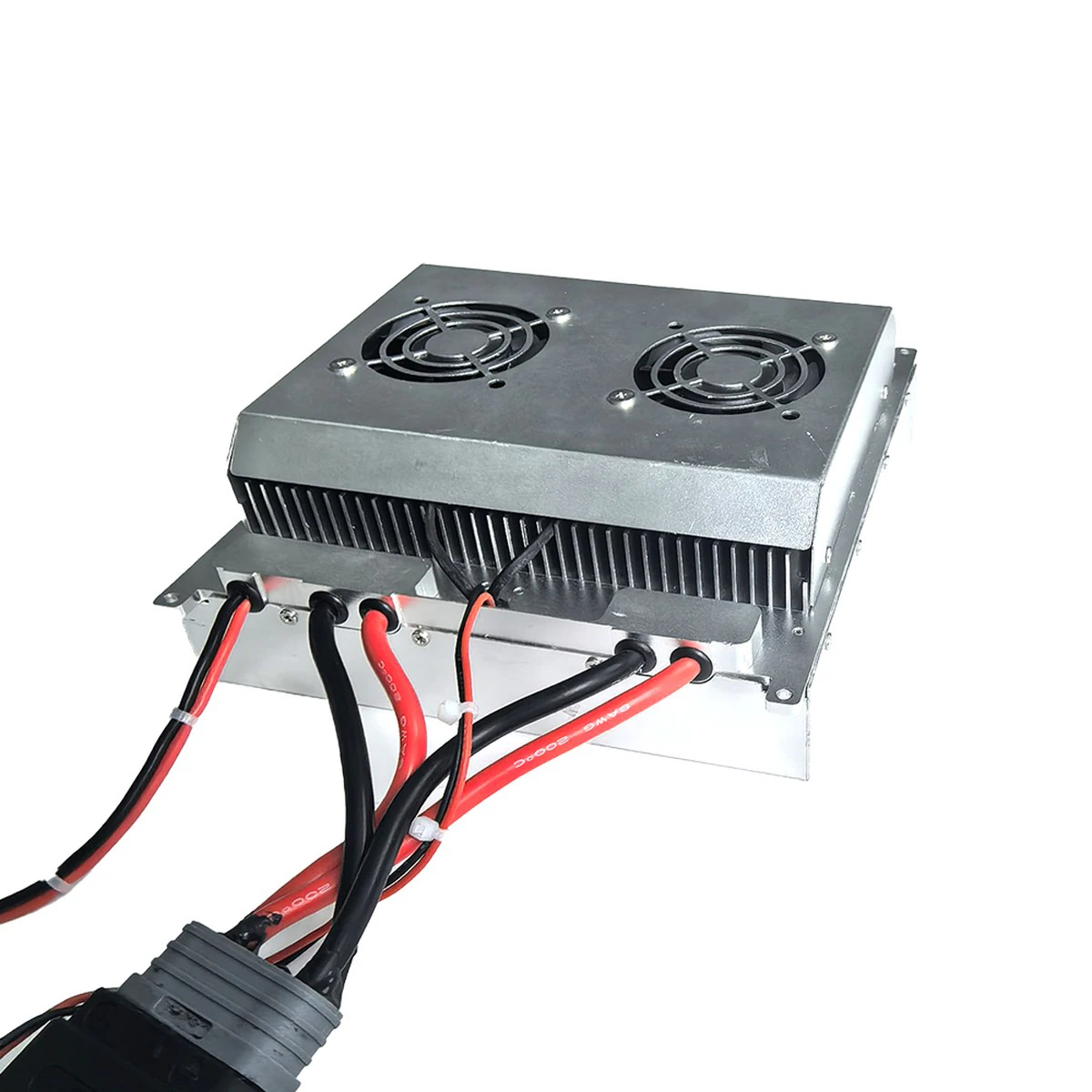

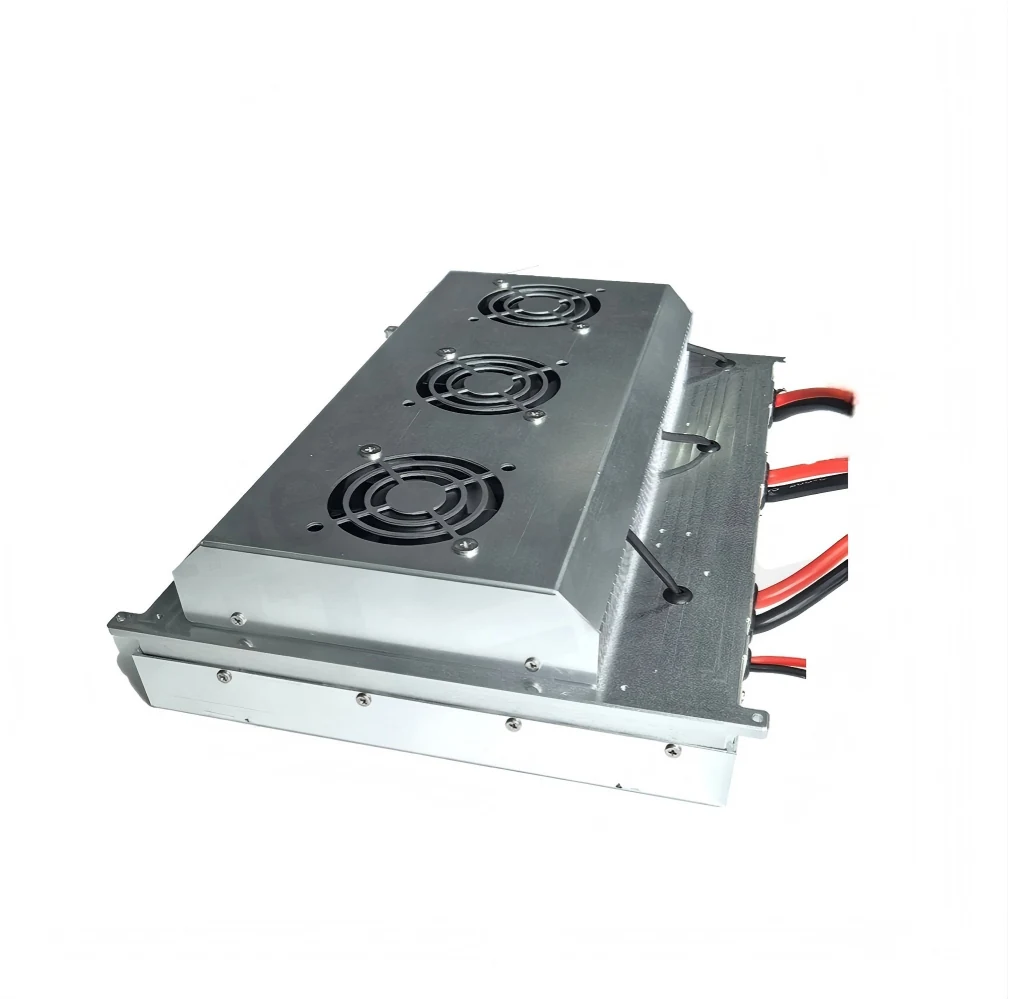

TP-P8 is an airborne power module for tethered UAVs with 680-800VDC input, 50VDC nominal output (47-50.5VDC range), 8kW rated power, 160A rated and 175A maximum current, and approximately 2.2kg weight. TethPower TP-P8 is an 8kW regulated airborne power module for high-power tethered UAV systems using a 50V-class aircraft bus. It converts 680-800VDC tether input into a controlled 50V output with 160A rated current.
Designed for heavier aircraft and payload architectures, TP-P8 combines 8kW continuous output, 2.2kg airborne weight, forced-air cooling and ≥97% conversion efficiency in a compact 187 × 185 × 70mm enclosure.
Features
- 8kW continuous output for 50V-class tethered UAV platforms
- 160A rated / 175A maximum output current
- High-voltage 680-800VDC tether input for efficient power transmission
- Compact 2.2kg airborne package with forced-air cooling
- Integrated protection for voltage, current, short-circuit and thermal faults
Key specifications
| Brand | TethPower |
|---|---|
| Model | TP-P8 |
| Input voltage range | 680-800VDC |
| Rated output voltage | 50VDC nominal (47-50.5VDC range) |
| Rated output current | 160A rated, 175A maximum |
| Rated power | 8kW |
| Peak output power | Not specified in current manual |
| Dimensions | 187 × 185 × 70mm ±1mm |
| Weight | Approx. 2.2kg |
| Protection rating | IP54 |
| Operating temperature | -40°C to +50°C |
| Efficiency | ≥97% |
| Voltage regulation accuracy | ±1% |
| Storage temperature | −40°C to +80°C |
| Maximum altitude | 2,000 m |
| Cooling | Integrated forced-air cooling |
| MOQ | 1 unit |
| Warranty | 1 year |
For complete electrical characteristics, protection thresholds, EMC/safety data and connector definitions, refer to the product manual. Contact Stella for the current version.
Applications
- Heavy-payload surveillance
- Industrial UAV platforms
- Communication relay
- High-output aerial lighting
- Mission systems requiring stable 50V-class power
System selection guidance
TP-P8 should be selected as part of the complete tethered UAV power chain, not from the kW rating alone. We review the aircraft battery/DC-bus voltage, continuous and peak demand, payload, tether length, cable voltage drop, operating altitude, temperature and ground-power architecture before confirming a matched configuration.
FAQ about TP-P8
What type of UAV is TP-P8 intended for?
TP-P8 is designed for higher-power UAV platforms using a 50V-class electrical architecture. Aircraft voltage limits, payload and available lift capacity must be confirmed before integration.
Is 175A the continuous output current?
No. Rated current is 160 A and maximum current is 175 A.
What is the peak output power?
Rated output is 8 kW. No separate peak-power rating is specified.
Why use 680-800VDC on the tether side?
Higher tether voltage reduces transmission current for a given power level, which helps control cable loss and cable weight over longer runs.
Can TP-P8 be used for cleaning or other heavy-payload missions?
It can be evaluated for heavy-payload missions when the aircraft voltage, propulsion power, payload, tether load and environmental conditions are all compatible.
Downloads
Product manual
8kW Tethered Drone Power Supply | TP-P8 50V Airborne Module
Need a different voltage, connector or a complete tethered system?Discuss a custom requirement Configure your system
