Overview

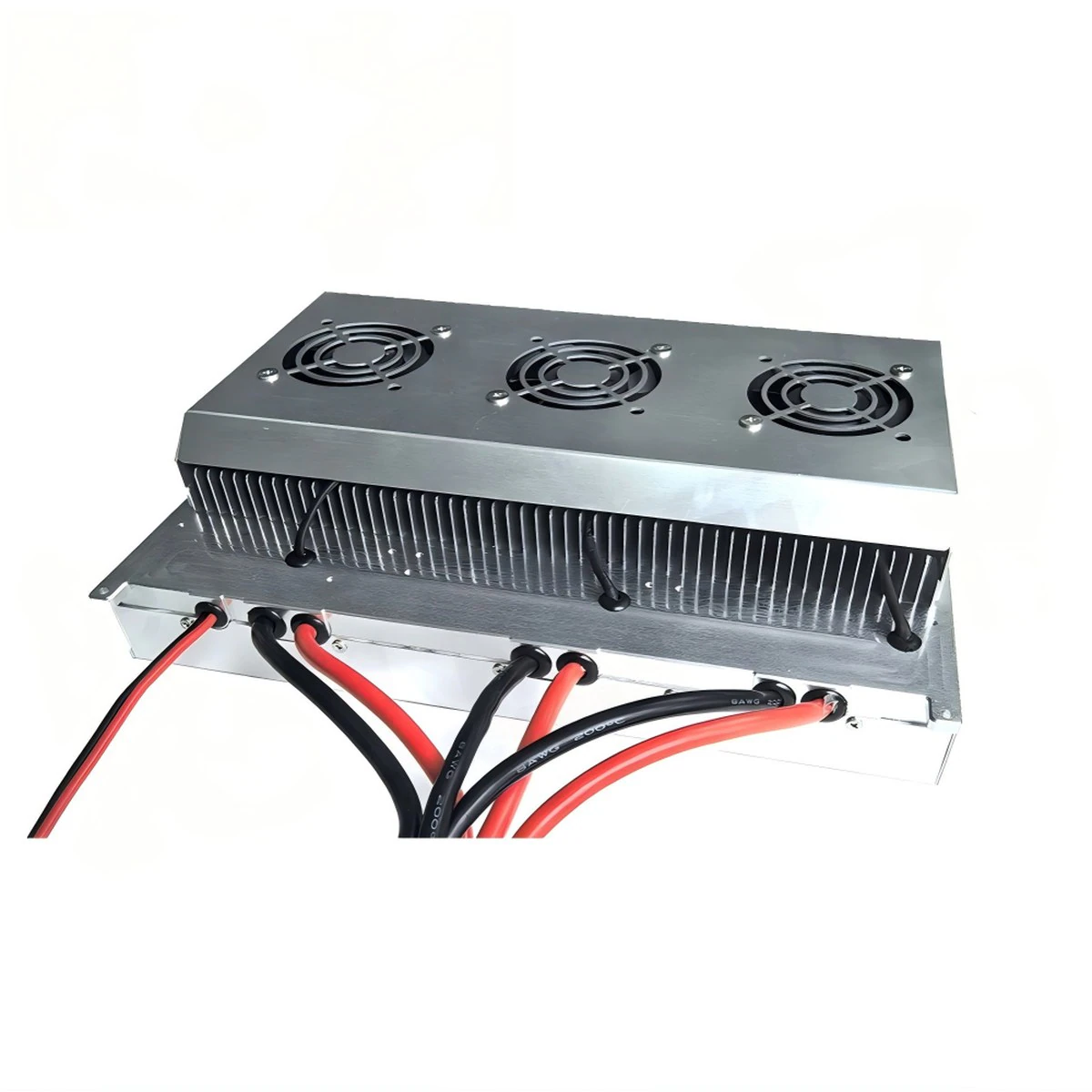

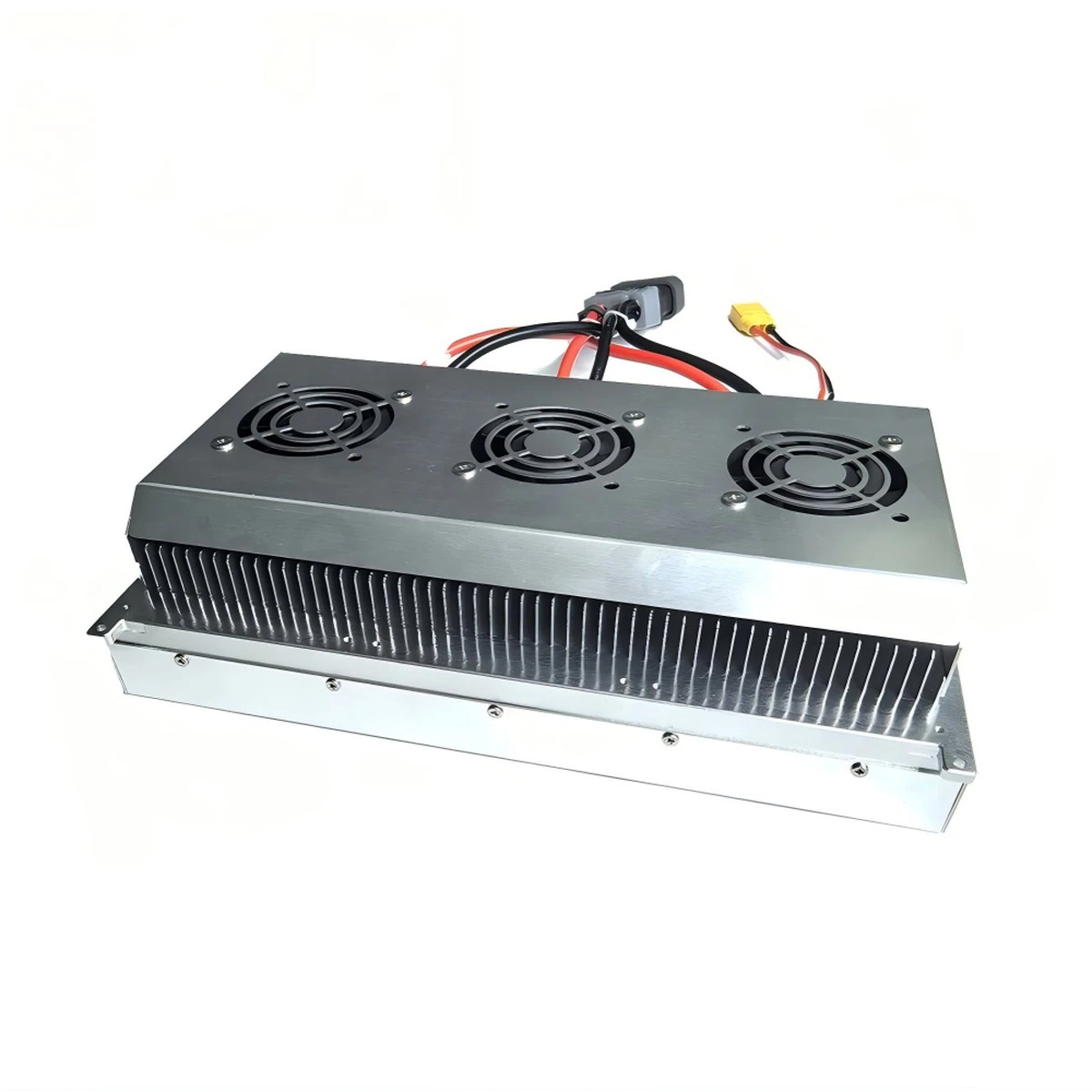

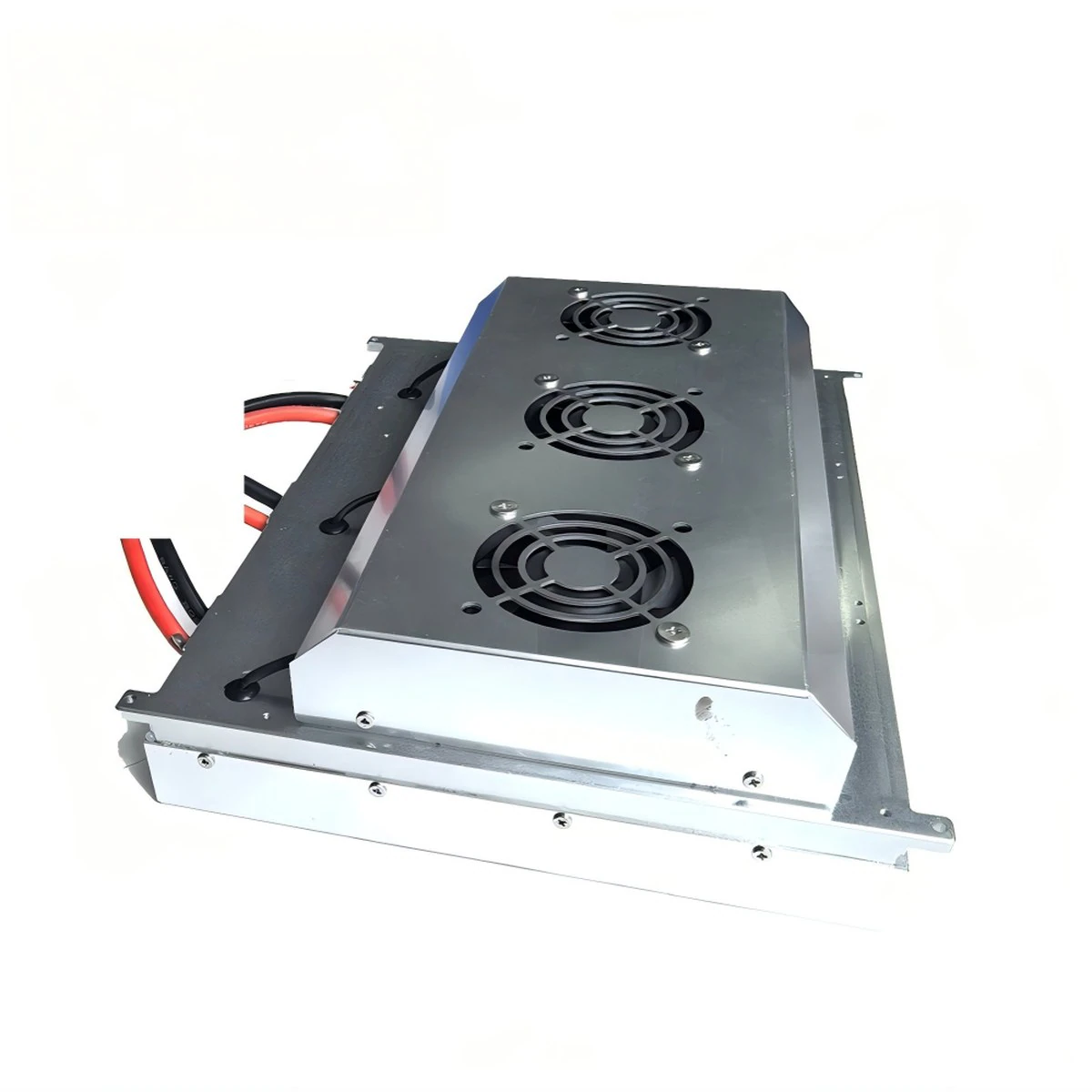

TP-P12 (50V version) is an airborne power module for tethered UAVs with 900-1000VDC input, 50VDC nominal output (49.5-50.5VDC range), 12kW rated power, 240A rated current and 3kg weight. TethPower TP-P12 50V is a 12kW airborne DC-DC power module for heavy-lift tethered UAV systems requiring a regulated 50V power bus. It converts 900-1000VDC tether input into a 50V-class output with 240A rated current.
At 3kg, the module is designed for aircraft where sustained high power, high current and outdoor protection are more important than ultra-light integration. IP65 construction and ≥97% efficiency support demanding long-duration industrial missions.
Features
- 12kW regulated output for heavy-lift 50V-class UAV platforms
- 240A rated output current
- 900-1000VDC high-voltage tether input
- 3kg airborne module with IP65 protection
- Current-sharing interface and comprehensive electrical protection in the technical design
Key specifications
| Brand | TethPower |
|---|---|
| Model | TP-P12 (50V version) |
| Input voltage range | 900-1000VDC |
| Rated output voltage | 50VDC nominal (49.5-50.5VDC range) |
| Rated output current | 240A rated |
| Rated power | 12kW |
| Peak output power | Not specified in current manual |
| Dimensions | 277 × 202 × 70mm |
| Weight | 3kg |
| Protection rating | IP65 |
| Operating temperature | -40°C to +55°C |
| Efficiency | ≥97% |
| Voltage regulation accuracy | ±1% |
| Storage temperature | −40°C to +80°C |
| Maximum altitude | 3,000 m |
| Cooling | Integrated forced-air cooling |
| MOQ | 1 unit |
| Warranty | 1 year |
For complete electrical characteristics, protection thresholds, EMC/safety data and connector definitions, refer to the product manual. Contact Stella for the current version.
Applications
- Heavy-lift tethered UAVs
- Persistent surveillance
- Industrial inspection
- High-power mission payloads
- Special-purpose long-duration aircraft
System selection guidance
TP-P12 should be selected as part of the complete tethered UAV power chain, not from the kW rating alone. We review the aircraft battery/DC-bus voltage, continuous and peak demand, payload, tether length, cable voltage drop, operating altitude, temperature and ground-power architecture before confirming a matched configuration.
FAQ about TP-P12
Is TP-P12 50V suitable for every 12S-class aircraft?
Not automatically. Nominal battery voltage alone is not enough; full-charge voltage, aircraft bus limits, continuous/peak power and battery-parallel behavior must be confirmed.
What is the rated output current?
The manual specifies 240A rated output at a 50V-class bus.
Does TP-P12 have a specified peak-power rating?
No separate peak-power value is stated in the current manual. The confirmed continuous rating is 12kW.
What tether input does this version require?
The 50V version is specified for 900-1000VDC input, with 950VDC rated input.
Why is system matching important at 12kW?
At this power level, tether voltage drop, connector current, thermal management, aircraft payload margin and backup-battery integration all become critical parts of the design.
