Overview
TP-P100 is an isolated onboard DC/DC module with 1600–2000VDC input, 430VDC rated output (400–440VDC range), 108kW rated power, 120kW maximum output and ≈34kg weight for engineered tethered-aircraft integration; it is mostly used on firefighting drones, and we usually customize the ground power station to project requirements. TP-P100 is a high-voltage isolated DC/DC module for advanced tethered UAV and aircraft development architectures requiring a 430V-class regulated output. The manual specifies a 1600–2000VDC input range, 430VDC rated output and a 400–440VDC output range.

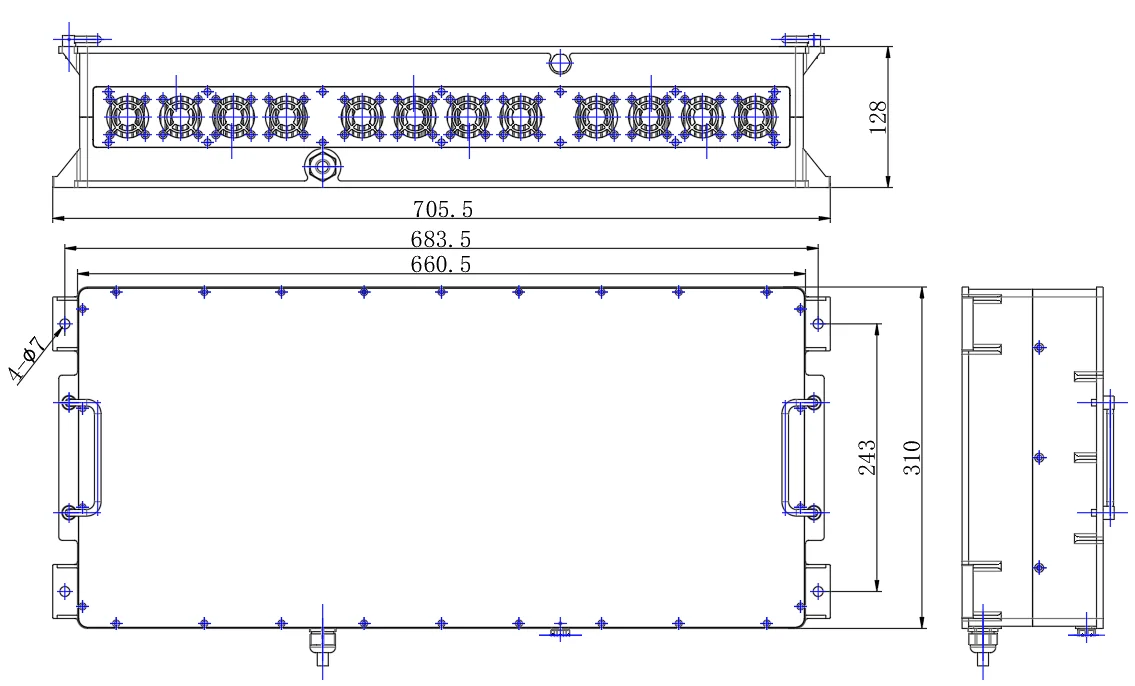

TP-P100 provides 108kW rated output, 120kW maximum output and 251A rated output current. The IP65 forced-air-cooled enclosure measures 660 × 308 × 128mm ±1mm and has an approximate net weight of 34kg.
These high-power modules are mostly used on firefighting drones. We usually customize the ground power station for them to the project's requirements.
Features
- 108kW rated output with 120kW maximum output capability
- 1600–2000VDC high-voltage input with a 430VDC regulated output
- 251A rated output current and ≥98% efficiency at 1900VDC and 50% load
- IP65 enclosure with fan-regulated forced-air cooling
- DSP-based design with CAN communication support stated in the product manual
- Overvoltage, overcurrent, short-circuit and overtemperature protection functions described in the electrical specification
Key specifications
| Brand | TethPower |
|---|---|
| Model | TP-P100 |
| Input voltage range | 1600–2000VDC |
| Rated output voltage | 430VDC (400–440VDC) |
| Rated output current | 251A |
| Rated power | 108kW |
| Maximum output power | 120kW |
| Efficiency | ≥98% |
| Voltage regulation accuracy | ±1% |
| Output ripple and noise | ≤10000mVp-p |
| Dimensions | 660 × 308 × 128mm ±1mm |
| Weight | ≈34kg |
| Protection rating | IP65 |
| Operating temperature | -20°C–+40°C |
| Storage temperature | -40°C–+85°C |
| Maximum altitude | 3,000m |
| Cooling | Forced-air cooling |
| Communication | CAN |
Applications
- High-voltage heavy-lift tethered UAV architectures with a compatible 430VDC bus
- Custom eVTOL and advanced aircraft development projects
- High-power aerial energy-system validation
- Parallel DC/DC power architectures subject to engineering review
System selection guidance
TP-P100 is intended only for project-specific high-voltage integration. Confirm the aircraft's 400–440VDC operating range, continuous and transient load, 34kg module mass, center of gravity, cooling flow, 1600–2000VDC tether transmission, insulation coordination, connectors, emergency response and regulatory operating envelope before selecting it.
FAQ about TP-P100
Why is the product called TP-P100 while its rated output is 108kW?
TP-P100 is the model name. Its rated output is 108kW and its maximum output is 120kW.
What aircraft bus voltage does TP-P100 require?
The manual specifies a 430VDC rated output with a 400–440VDC output range. Aircraft bus tolerance, battery behavior, control interfaces and connector ratings must be confirmed before integration.
Can TP-P100 be used as a plug-and-play drone accessory?
No. The module is approximately 34kg and operates in a 1600–2000VDC input architecture. It requires an engineered aircraft, tether, ground source, protection system and operating procedure.
Can several TP-P100 modules be used together?
The product manual describes dynamic current balancing and scalable parallel operation. Any multi-module design requires validated sharing control, wiring, fault protection, cooling and aircraft integration.
Downloads
Product manual
